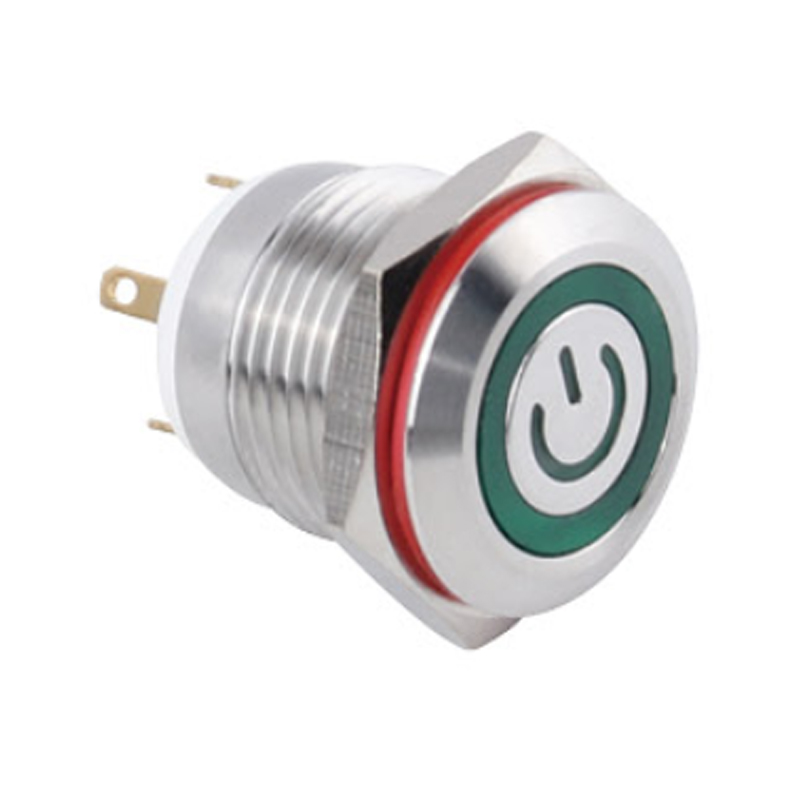

Waterproof Momentary Metal Button Switch: The Switch That Works When It Is Wet

A momentary switch closes a circuit only while the button is pressed. Release it and the circuit opens. A waterproof momentary metal button switch does that in the rain, in the washdown, and on the deck of a boat. The metal housing takes the impact. The seal keeps the water out of the contacts. The button returns to its position when released. For outdoor equipment, marine panels, and food processing machinery, the switch is the interface that has to work when everything around it is wet.

The Seal That Keeps the Water Out

The switch has two places where water can enter: the button opening and the base where the terminals exit. The button seal is an O-ring or a rubber boot that compresses when the button is pressed and returns when it is released. The base seal is a gasket or a potting compound that closes the gap around the terminals.

A waterproof momentary metal button switch with a proper IP rating, typically IP67 or IP68, survives immersion and washdown. The rating has to match the installation. IP67 handles temporary immersion. IP68 handles continuous submersion at the specified depth.

The seal material matters. Silicone stays flexible in cold and heat. Nitrile resists oil and fuel. EPDM resists water and steam. A waterproof momentary metal button switch with the right seal for the environment keeps the water out through years of use.

The Momentary Action

The switch closes only while the button is held. The internal mechanism is a spring-loaded contact that returns to the open position when the pressure releases. The spring has to return the button every time, even after thousands of cycles.

A waterproof momentary metal button switch with a properly tensioned spring and a quality contact mechanism returns consistently. A weak spring leaves the button stuck. A worn contact fails to close the circuit.

The contact rating determines the load the switch can handle. A switch rated for 2 amps at 250 volts handles a control circuit. A switch rated for 10 amps handles a small motor. The rating is printed on the switch or in the datasheet.

The Metal Housing

The housing is stainless steel, aluminum, or brass. Stainless resists corrosion in salt water and chemicals. Aluminum is lighter and cheaper but needs a coating for the marine environment. Brass is the traditional choice for the electrical panel.

A waterproof momentary metal button switch with a stainless steel housing and a stainless button survives the marine deck and the food plant washdown. The housing protects the internal mechanism from impact.

The mounting is threaded or panel-mount with a nut and a gasket. The threaded body screws through the panel and the nut tightens the switch against the gasket. A waterproof momentary metal button switch with a proper mounting gasket seals against the panel face.

Here is what a waterproof momentary metal button switch needs to deliver:

• IP67 or IP68 rating matched to the installation
• Seal material for the environment
• Spring that returns the button every cycle
• Contact rating for the load
• Stainless, aluminum, or brass housing
• Panel-mount gasket that seals against the face

Where the Switch Works

Marine panels use the switch for the horn, the lights, and the trim. The salt spray and the rain hit the panel. A waterproof momentary metal button switch keeps the contacts dry.

Food processing equipment uses the switch for the start, the stop, and the jog. The washdown hits the panel every shift. A waterproof momentary metal button switch with the right IP rating survives the hose.

Outdoor equipment and access control use the switch for the gate, the door, and the alarm. The weather hits the panel. The switch has to work.

What Fails on a Cheap Switch

The button seal hardens and cracks. Water enters and the contacts corrode. A waterproof momentary metal button switch with a quality seal holds. The spring weakens and the button sticks. A proper spring returns. The housing corrodes because the material was wrong for the environment. Stainless or coated aluminum holds.

A waterproof momentary metal button switch is a small part of the control panel. It sits in the weather and waits for the press. Choose a switch with the right IP rating, the right seal, and the right contact rating. The circuit closes when the button is pressed and opens when it is released.
