16/19/22mm Red Mushroom Head Emergency Stop Button Switch

Product Overview
The 16mm, 19mm, and 22mm red mushroom head emergency stop button switches are critical components in industrial safety systems, each tailored to specific operational needs.

The 16mm model is ideal for compact applications, offering a space-saving design without compromising on reliability. It typically features a 3-pin configuration with 1NO1NC contacts, supporting voltages up to 250V AC and currents up to 3A.

The 19mm version provides a balance between size and functionality. It often includes a 3-pin latching mechanism with 1NO1NC contacts, rated for 250V AC and 3A. The slightly larger head enhances visibility and user interaction, making it suitable for a wide range of machinery and control panels.

The 22mm model is designed for high-demand environments. It typically offers a 4-pin configuration with 1NO1NC contacts, supporting higher currents up to 10A and voltages up to 660V AC. The robust construction and larger head size ensure durability and easy activation.

Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd.
  • Lowtemperature Lowtemperature
  • Hightemperature Hightemperature
  • Flame retardant Flame retardant
  • Safeandreliable Safeandreliable
  • Largeendface Largeendface
  • Leftandrightrotationlock Leftandrightrotationlock
  • AC and DC AC and DC
  • Built-in buck resistor Built-in buck resistor
  • Built-in waterproof ring Built-in waterproof ring
Description Physical Appearance Contact Us
Product Description:

Product Details
Gold plated pins, large silver contacts
CNC processing, exquisite appearance
M-shaped with concave design, easy to operate
Environmentally friendly sealing ring, brass nut

Product Details:
  • Zhejiang Wandu Electric Co., Ltd. Gold-plated-pins-large-silver-contacts
  • Zhejiang Wandu Electric Co., Ltd. CNC-processing-exquisite-appearance
  • Zhejiang Wandu Electric Co., Ltd. M-shaped-with-concave-design-easy-to-operate
  • Zhejiang Wandu Electric Co., Ltd. Environmentally friendly sealing ring, brass nut

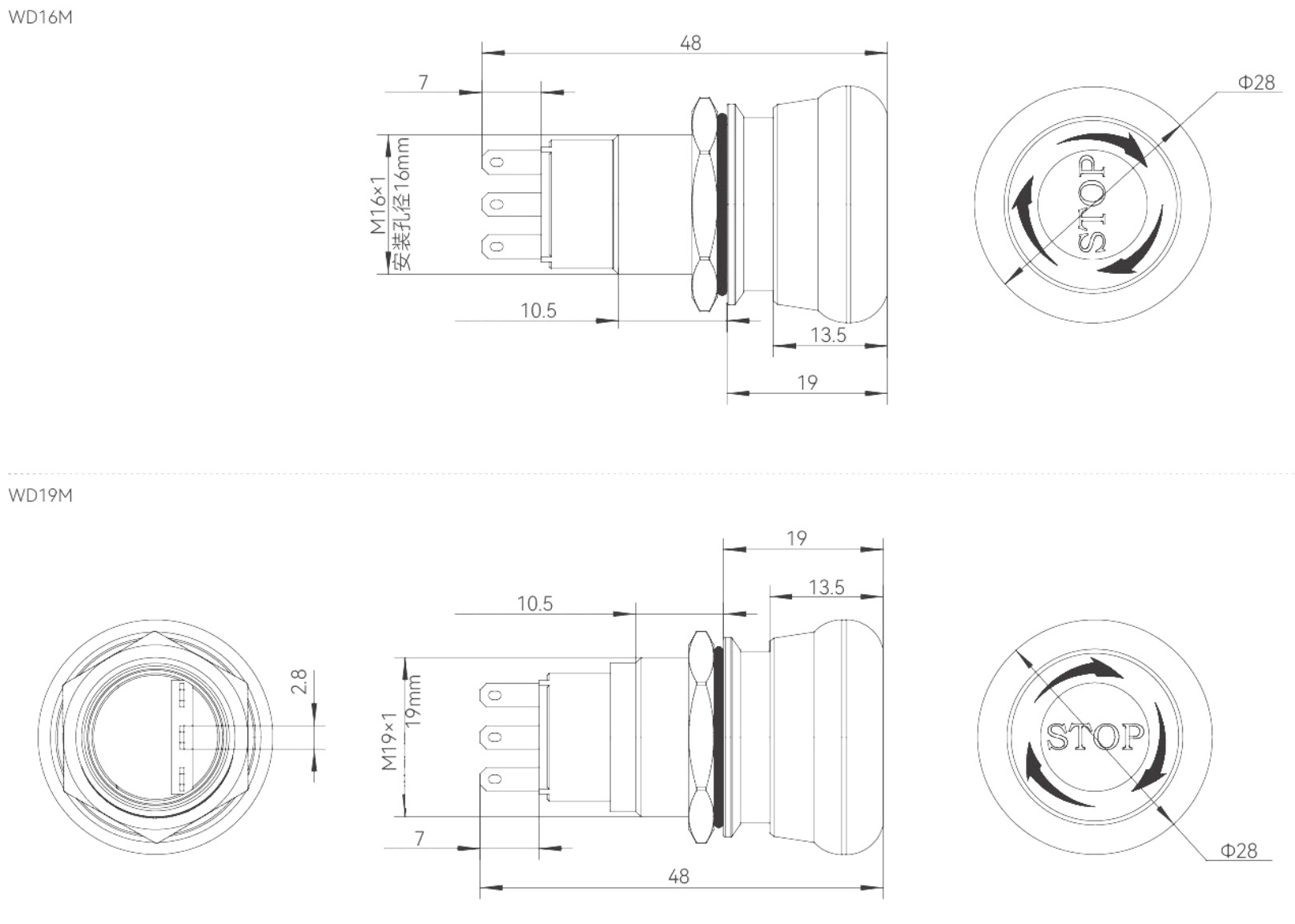

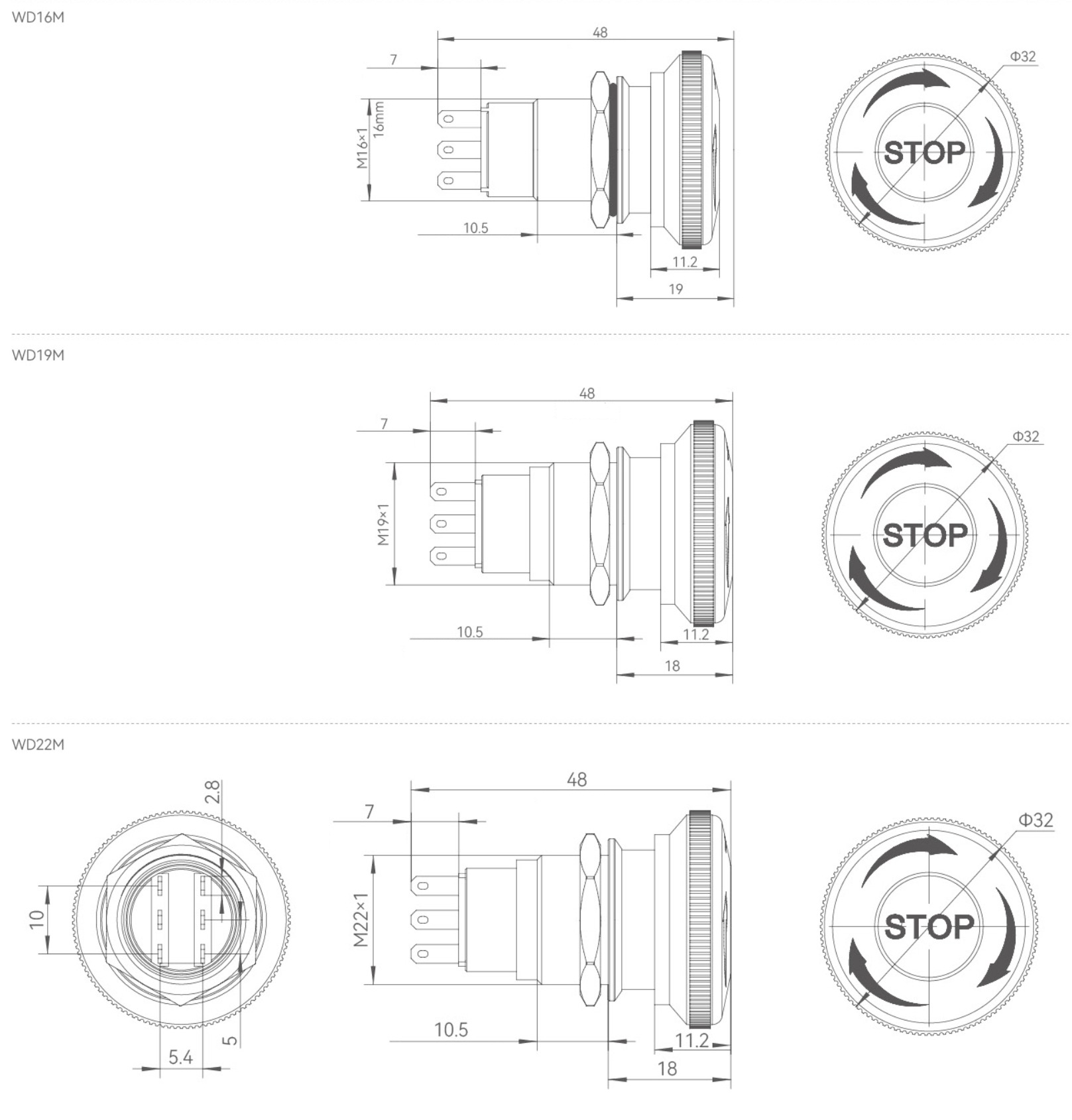

External Dimensions:

Parameters of the switch
Mountng hole diameter 16~16.1mm、19~19.1mm、22~22.1mm
Switching voltage 1.5V~250VAC/DC
Current rating Resistive loads DC-13:12V/24V3A
AC-15:110V/250V3A
Inductive loads AC-15:110V/250V0.75A
DC-13:110V0.75A
Rated heating current ith:3A/250VAC
Waterproof rating IP55 at the end of the button
Ambient temperature -30℃~85℃
Form of work Self-locking/self-resetting(optional)
Switch combinations 1NO1NC/2NO2NC
PIN pin style Switch pin 2.8×0.5&LED pin 2.8x0.5
Base material Modified nylon PA66
Dielectric strength ≥100MQ 500VDC/h
Compressive strength Pins and housings 2500VAC 20mA/min
Housing material SUS304/Brass nickel-plated/aluminum alloy anodized
Key Material PC&SUS316
Contact material Silver tin oxide alloy contacts
Electrical life DC-13:12V0.5A>500,000 times DC-13:12V 0.5A>50
Mechanical life DC-13:12V0.5A>1,000,000 times DC-13:12V 0.5A>100
Contact resistanceh Contact resistanceh<50mΩ
Press down on pressure Approximately 2.5~4N
Button travel The key stroke is 3mm and the contact stroke is 1,5mm

Project Parameter Description of the switch structure
Rated insulation voltage Ui AC250V C is the common end,NO is the
normally open end,
and NC is normally closed

C is the common end,NO is the
normally open end,
and NC is normally closed

Agree on the heating current Ith 5A
Rated voltage DC12V DC24V DC36V AC220V
Rated current(A) Resistive loads
Inductive loads 1.25  1.25  1.25

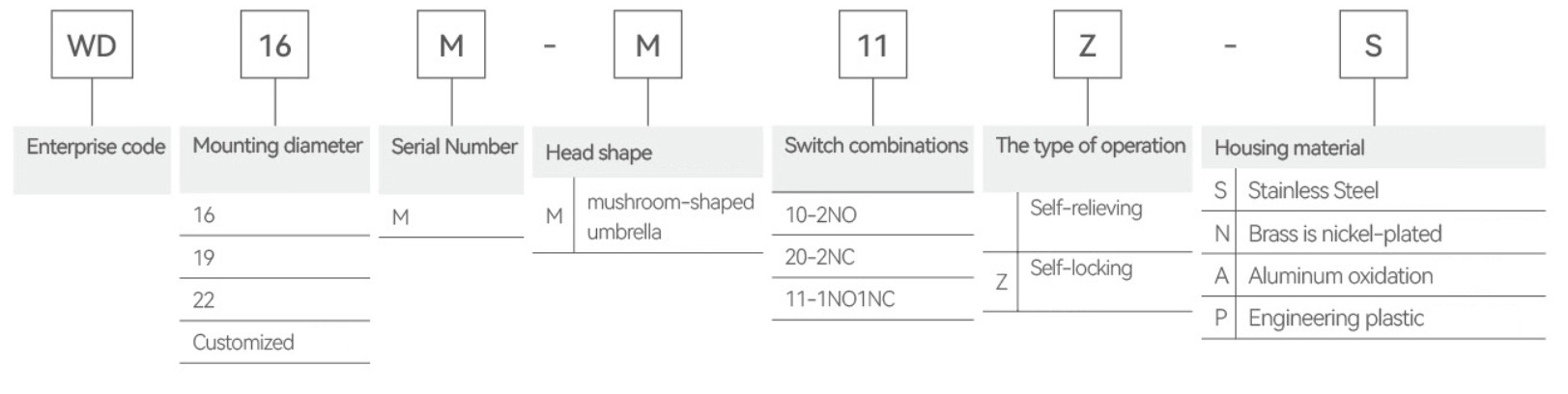

The type of key:

Physical appearance:
