19mm High Current Luminous LED Metal Button Switch

Product Overview
The 19mm High Current Luminous LED Metal Button Switch combines visual signaling with toughness. Its luminous LED accent illuminates function or status, making it useful in dark, low‐visibility, or aesthetic settings. The metal bezel and body provide a premium texture and durability, while the enlarged silver contacts and thick pins support high currents without overheating. This switch is available in both latch and momentary styles; the LED may remain constantly lit or only illuminate when the switch is active.

Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd.
  • Deep waterproofing Deep waterproofing
  • powerfulload powerfulload
  • Flame retardant Flame retardant
  • Big silver contact Big silver contact
  • Multiple luminous colors Multiple luminous colors
  • Promise lamp beads Promise lamp beads
  • AC and DC AC and DC
  • Built-in buck resistor Built-in buck resistor
  • Built-in waterproof ring Built-in waterproof ring
Description Physical Appearance Contact Us
Product Description:

Product Details
Gold plated pins, large silver contacts
CNC processing, exquisite appearance
Large aperture,high brightness

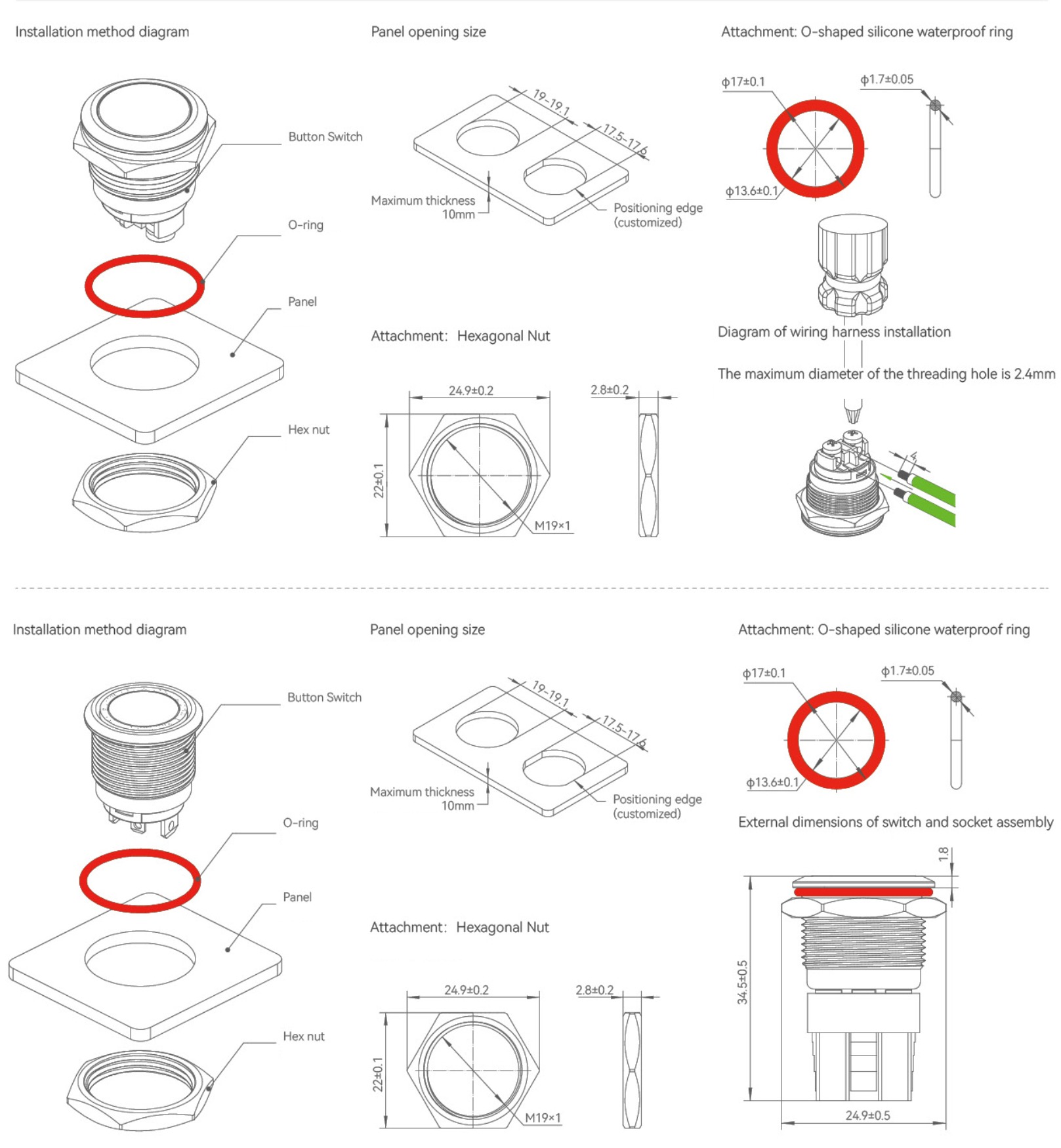

Environmentally friendly sealing ring, brass nut

Product Features
Optional wired socket connection to ensure contact performance;
The diameter of the operation button is increased. which has stable self-locking performance and comfortable operation feet;
it has a delicate metal texture and high-end appearance design;
The new structural design has stable on-off performance and improved the ability to resist welding deformation;
IP65 waterproof grade at the end of the button (IP67 can be customized);
Mechanical life: up to 1,000,000 cycles;
Enlarge and thickened silver contacts to achieve 15A ultra-large passing current;
Widening and thickening the pins to improve the current passing performance and refuse to heat;
it has applied for or obtained a number of patents, and has passed RoHS, CQC, CE certification.

Product Details:
  • Zhejiang Wandu Electric Co., Ltd. Gold-plated-pins-large-silver-contacts-6
  • Zhejiang Wandu Electric Co., Ltd. CNC-processing-exquisite-appearance-6
  • Zhejiang Wandu Electric Co., Ltd. Large-aperture-high-brightness-5
  • Zhejiang Wandu Electric Co., Ltd. Environmentally friendly sealing ring, brass nut

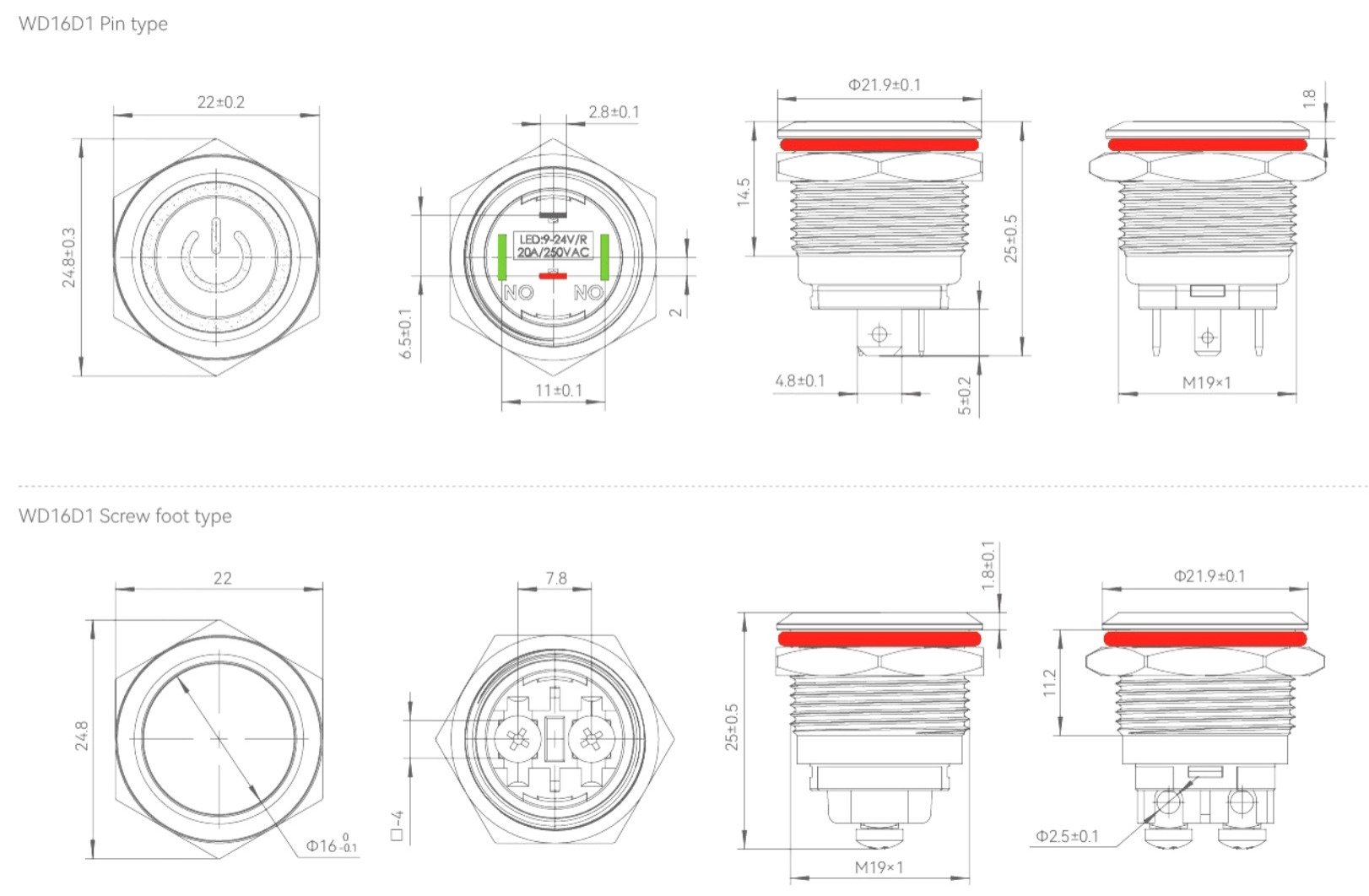

External Dimensions:

The type of key:

Physical appearance:

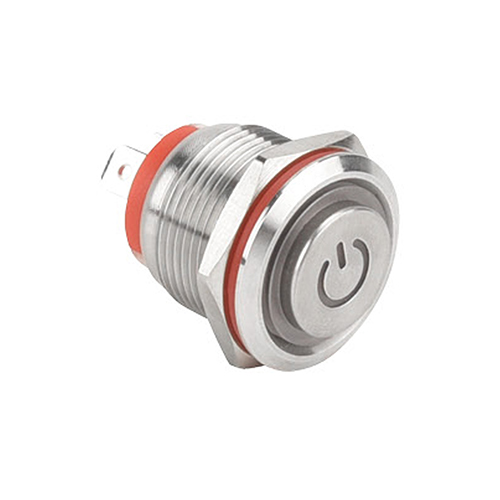

  •             WD19D1-G1-EC-□□-S-1 High Current Metal Pushbutton Switches WD19D1-G1-EC-□□-S-1

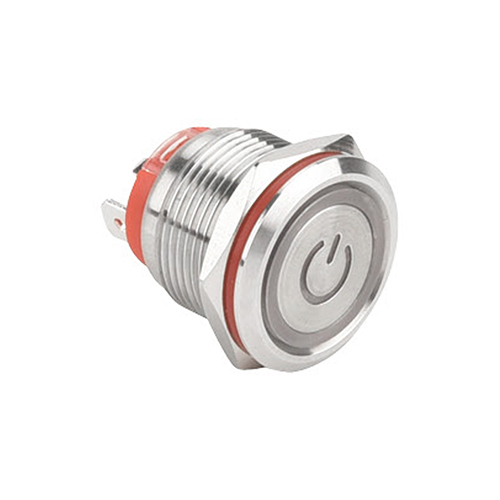

  •             WD19D1-P1-EC-□□-S High Current Metal Pushbutton Switches WD19D1-P1-EC-□□-S

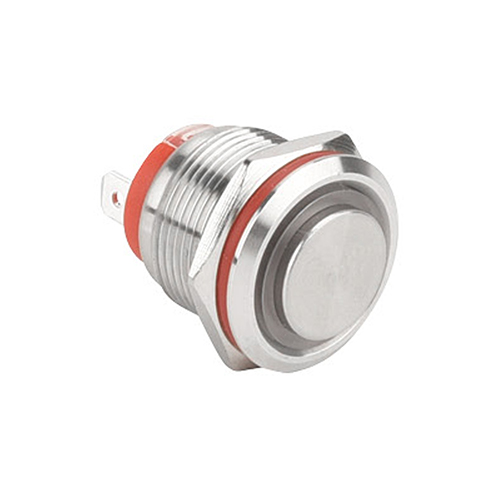

  •             WD19D1-G1-E-□□-S-1 High Current Metal Pushbutton Switches WD19D1-G1-E-□□-S-1

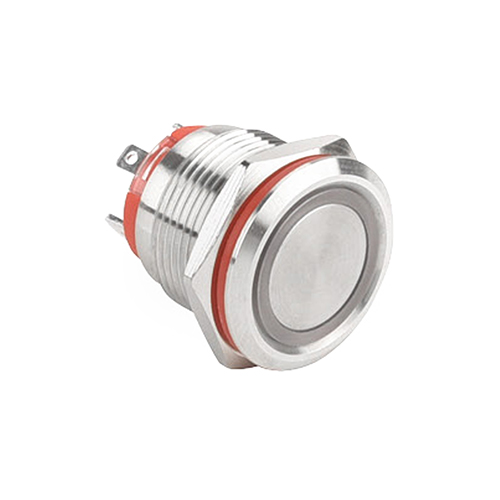

  •             WD19D1-P1-E-□□-S High Current Metal Pushbutton Switches WD19D1-P1-E-□□-S
