22mm Installation Size 1NO1NC Push Button Switch

Product Overview
This 22mm push button switch is engineered for versatility and durability in industrial applications. Featuring a 1NO1NC contact configuration, it ensures reliable switching performance with a mechanical life of up to 1,000,000 cycles. Its IP67 waterproof rating at the key end makes it suitable for harsh environments. The switch offers options for two-color, three-color, and multi-color illumination, providing clear status indication. With a sleek metallic finish and ergonomic design, it combines functionality with aesthetic appeal.

Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd.
  • Deep waterproofing Deep waterproofing
  • powerfulload powerfulload
  • Flame retardant Flame retardant
  • Big silver contact Big silver contact
  • Multiple luminous colors Multiple luminous colors
  • Promise lamp beads Promise lamp beads
  • AC and DC AC and DC
  • Built-in buck resistor Built-in buck resistor
  • Built-in waterproof ring Built-in waterproof ring
Description Physical Appearance Contact Us
Product Description:

Product Details
Gold plated pins, large silver contacts
CNC processing, exquisite appearance
Large aperture,high brightness
Environmentally friendly sealing ring, brass nut

Product Features
It can be connected with a wired socket to ensure contact performance and reduce man-hours and refuse to waste;
The diameter of the operation button is increased, which has stable self-locking performance and comfortable operation feel;
it has a super metallic texture and high-end appearance design;
New structural design, fast-moving contacts, stable on-off performance;
IP67 waterproof grade at the key end;
Mechanical life: up to 1,000,000 cycles;
It can realize two-color, three-color and multi-color luminescence;
Enlarged thickened silver contacts,10A large load;
Widened and thickened pins to increase current passing performance and refuse to heat;
it has applied for or obtained a number of patents, and has passed CQC and CE certification.

Product Details:
  • Zhejiang Wandu Electric Co., Ltd. Gold-plated-pins-large-silver-contacts-9
  • Zhejiang Wandu Electric Co., Ltd. CNC-processing-exquisite-appearance-9
  • Zhejiang Wandu Electric Co., Ltd. Large-aperture-high-brightness-8
  • Zhejiang Wandu Electric Co., Ltd. Environmentally friendly sealing ring, brass nut

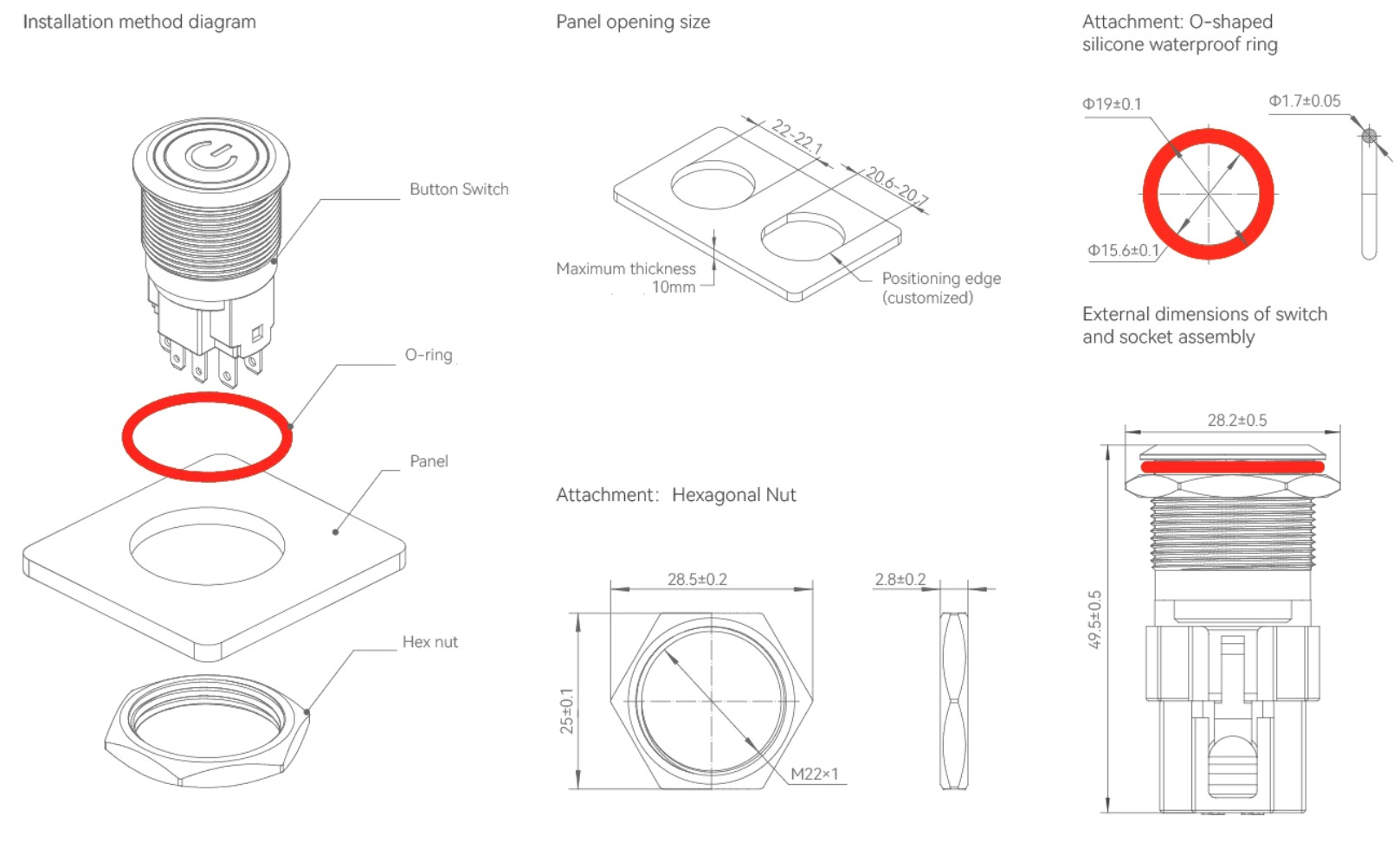

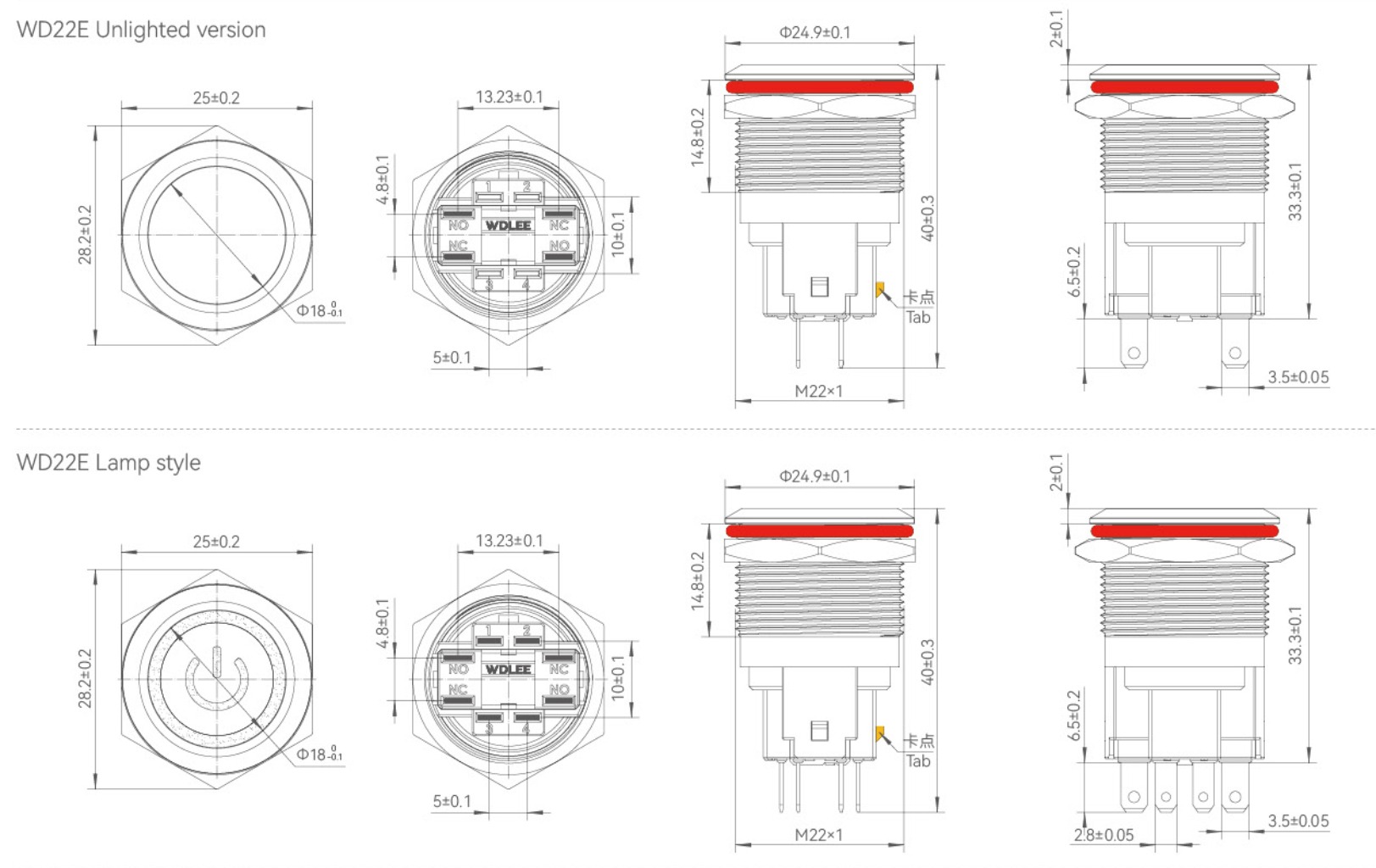

External Dimensions:

The type of key:

Physical appearance:

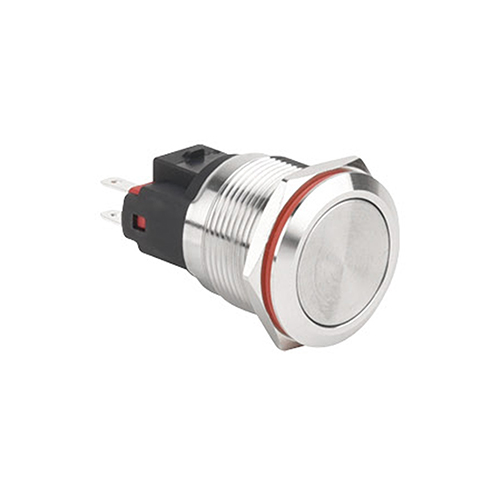

  •             WD22E-P11-S High Current Metal Pushbutton Switches WD22E-P11-S

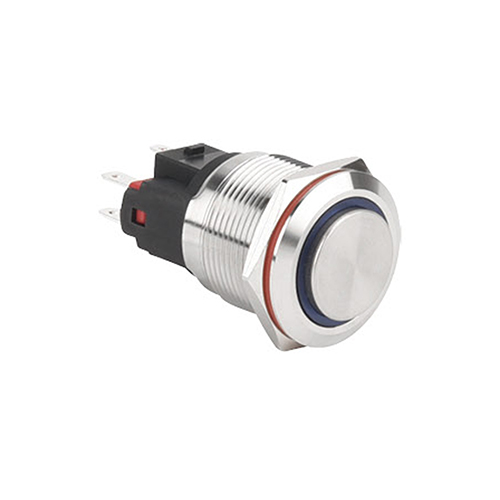

  •             WD22E-G11-E-□□-S High Current Metal Pushbutton Switches WD22E-G11-E-□□-S

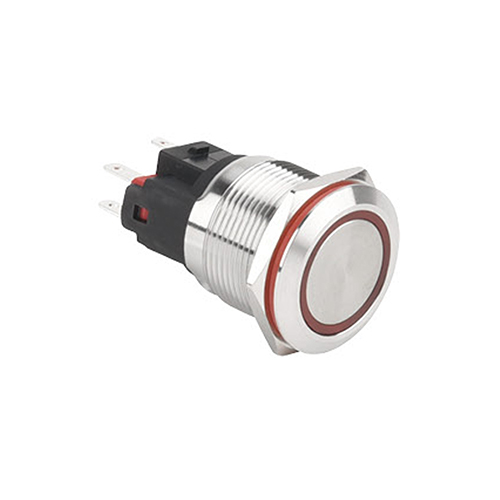

  •             WD22E-P11-E-□□-S High Current Metal Pushbutton Switches WD22E-P11-E-□□-S

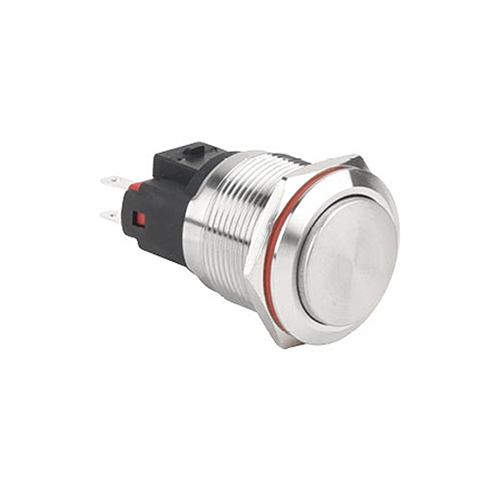

  •             WD22E-G11-S High Current Metal Pushbutton Switches WD22E-G11-S

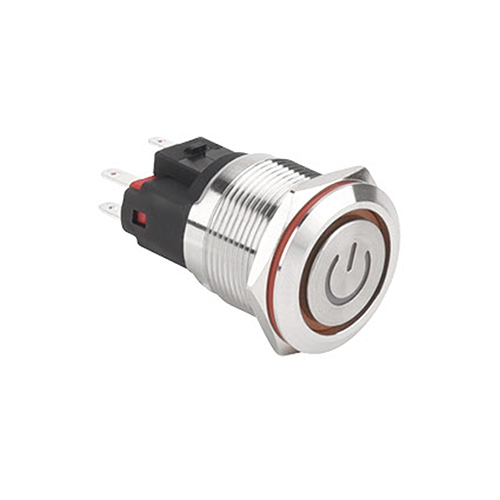

  •             WD22E-P11-EC-□□-S High Current Metal Pushbutton Switches WD22E-P11-EC-□□-S

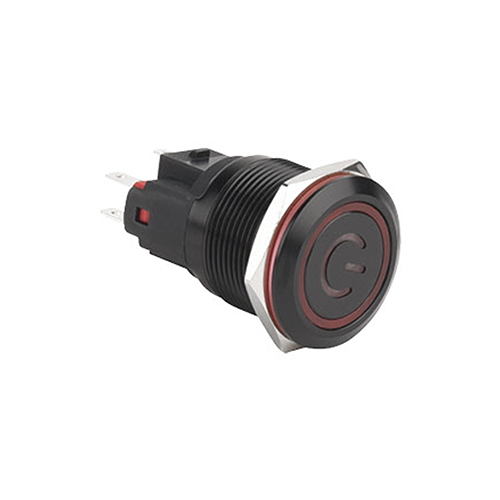

  •             WD22E-P11-EC-□□-A High Current Metal Pushbutton Switches WD22E-P11-EC-□□-A

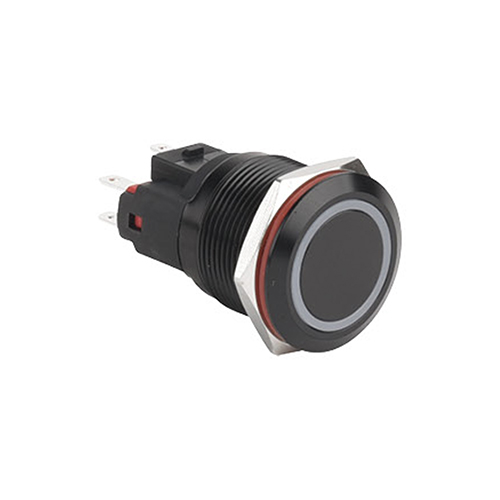

  •             WD22E-P11-E-□□-A High Current Metal Pushbutton Switches WD22E-P11-E-□□-A

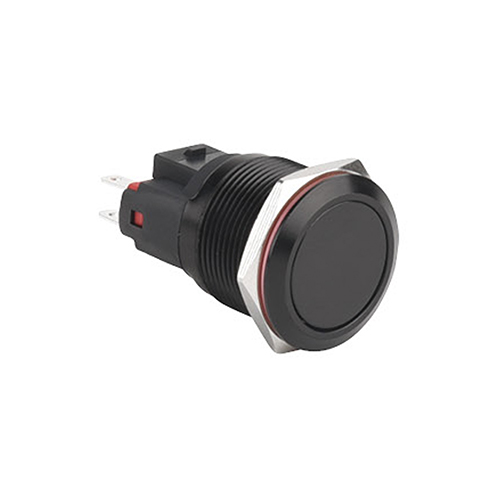

  •             WD22E-P11-A High Current Metal Pushbutton Switches WD22E-P11-A
