16mm/19mm High-decibel Metal Buzzer with Indication

Product Overview
The 16mm and 19mm high-decibel metal buzzers with indication are compact yet powerful signaling devices designed for industrial and commercial applications.

16mm Buzzer: This ultra-compact model is ideal for space-constrained environments. Despite its small size, it delivers a sound pressure level of 80–105 dB and features a built-in LED indicator. Available in various voltages (6V, 12V, 24V, 36V, 110V, 220V), it ensures clear alerts in machinery, control panels, and automation systems.

19mm Buzzer: Offering a slightly larger footprint, the 19mm buzzer provides enhanced acoustic output, making it suitable for environments with higher ambient noise levels. It maintains the same voltage versatility and includes an LED indicator for visual alerts.

Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd.
  • Deepwaterproofing Deepwaterproofing
  • Continuousvocalization Continuousvocalization
  • Flame retardant Flame retardant
  • Waterprooflevel Waterprooflevel
  • Multiple luminous colors Multiple luminous colors
  • Promise lamp beads Promise lamp beads
  • AC and DC AC and DC
  • Built-in buck resistor Built-in buck resistor
  • Built-in waterproof ring Built-in waterproof ring
Description Physical Appearance Contact Us
Product Description:

Product Details
Screw end wiring, convenient and fast
CNC processing, exquisite appearance
Large aperture,high brightness
Environmentally friendly sealing ring, brass nut

Product Details:
  • Zhejiang Wandu Electric Co., Ltd. Screw-end-wiring-convenient-and-fast
  • Zhejiang Wandu Electric Co., Ltd. Large-aperture-high-brightness-10
  • Zhejiang Wandu Electric Co., Ltd. CNC-processing-exquisite-appearance-11
  • Zhejiang Wandu Electric Co., Ltd. Environmentally friendly sealing ring, brass nut

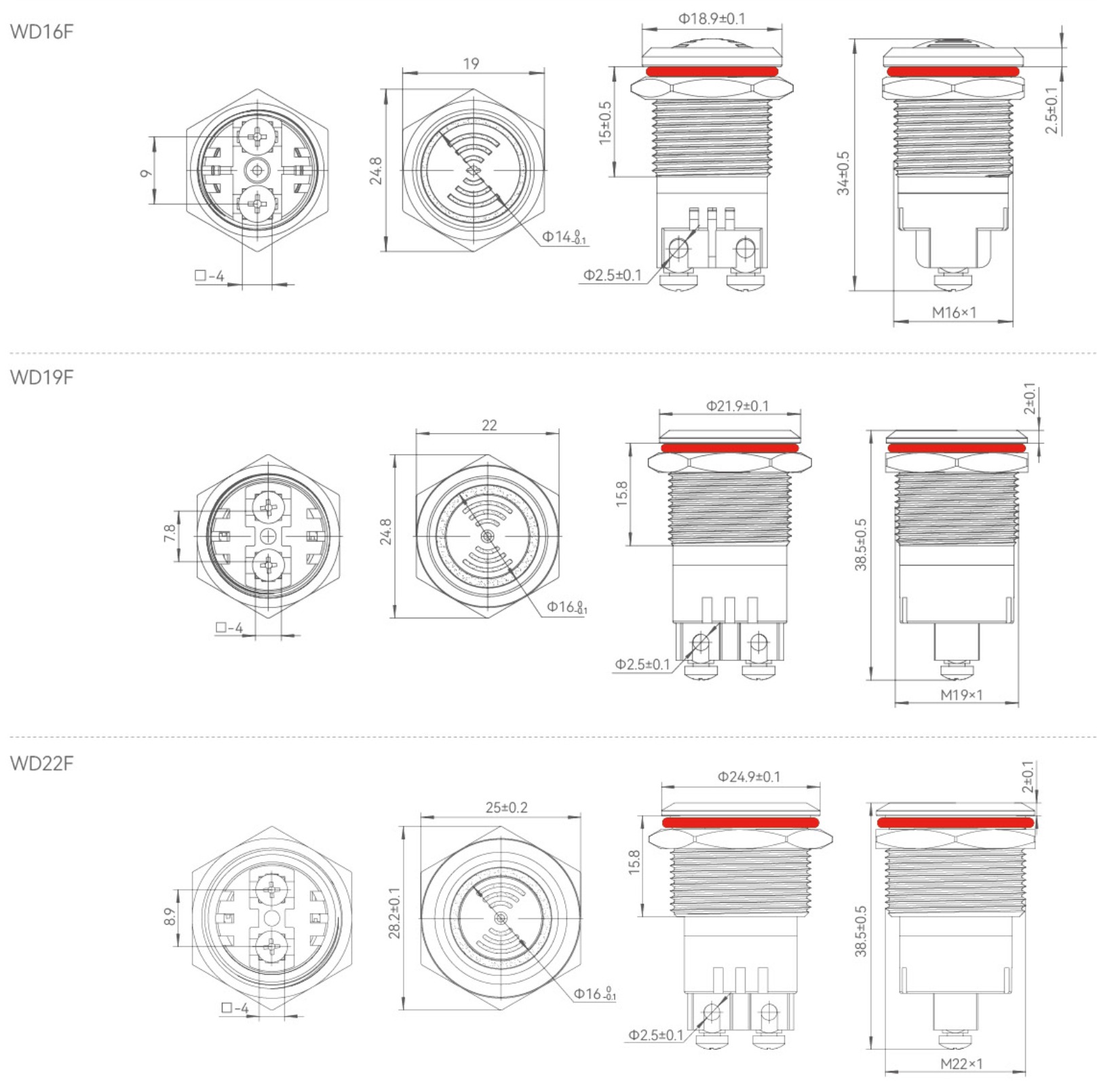

External Dimensions:

Parameters of the switch
Mounting hole diameter 9~19.2mm
Operating voltage AC/DC 6V、12V、24V、110V、220V
Operating Current: 15~35mA
Glowing color Red
Waterproof rating IP67 at the end of the button
Ambient temperature -30℃~85℃
Form of workerature Continuous/intermittent vocalization(optional)
Compressive strength Pins and housings 2500VAC 20mA/min
Base material Modified nylon PA66
Dielectric strength ≥100MΩ 500VDC/h
PIN pin style Screw crimping terminal The maximum diameterof the threading hole is 2.4mm
Housing material SUS304/Brass nickel-plated/aluminum alloy anodized
End aperture materia PC&SUS316
Electrical life 40000h
Loudness/frequency 80~100dB/2300士300Hz
The type of key:

Physical appearance:

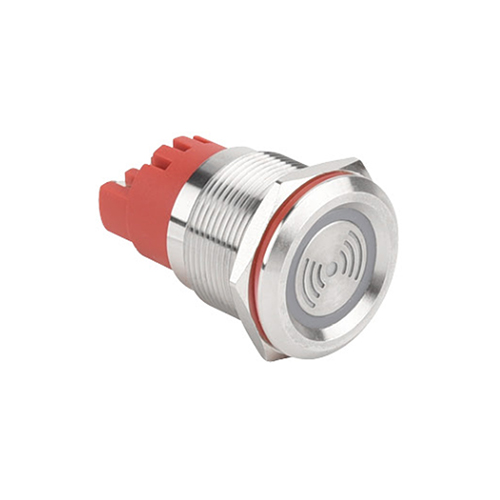

  •             WD22F Metal Buzzer WD22F

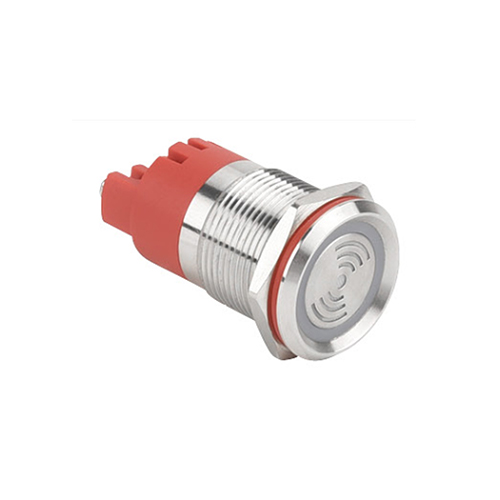

  •             WD19F-1 Metal Buzzer WD19F-1

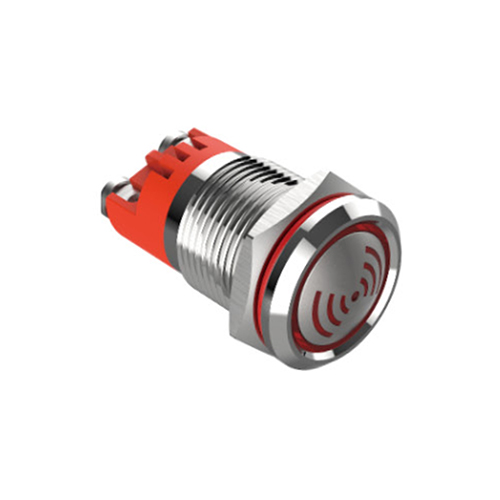

  •             WD16F Metal Buzzer WD16F
