High Brightness LED Metal Spherical Indicator Light

Product Overview
High Brightness LED Metal Spherical Indicator Lights are precision-engineered signal devices available in 12mm, 16mm, 19mm, 22mm, and 25mm sizes, designed to meet diverse industrial and control panel requirements. These indicators feature high-intensity LED chips encased in durable metal housings, ensuring clear visibility even in bright environments. They offer a variety of LED colors—including red, green, blue, yellow, and white—and are compatible with multiple voltage options such as 3V, 6V, 12V, 24V, 110V, and 220V, providing flexibility for various applications. The IP65 or higher waterproof ratings make them suitable for both indoor and outdoor installations.

Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd.
Description Physical Appearance Contact Us
Product Description:

Product Features
Unique exterior design;
Super bright and luminous, with clear prompts;
Uitra short installation size;
All built-in step-down resistors;
The commonly used installation hole sizes are complete;

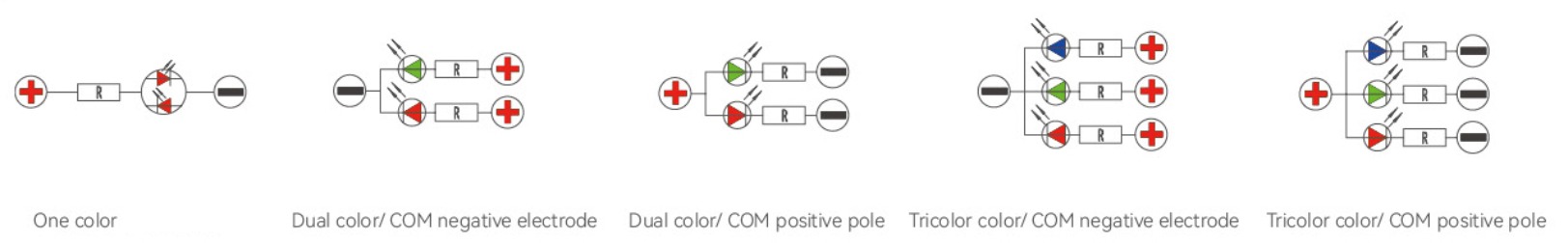

Multiple wiring methods are used: Pin/terminal/lead.

Product Details:
  • Zhejiang Wandu Electric Co., Ltd.

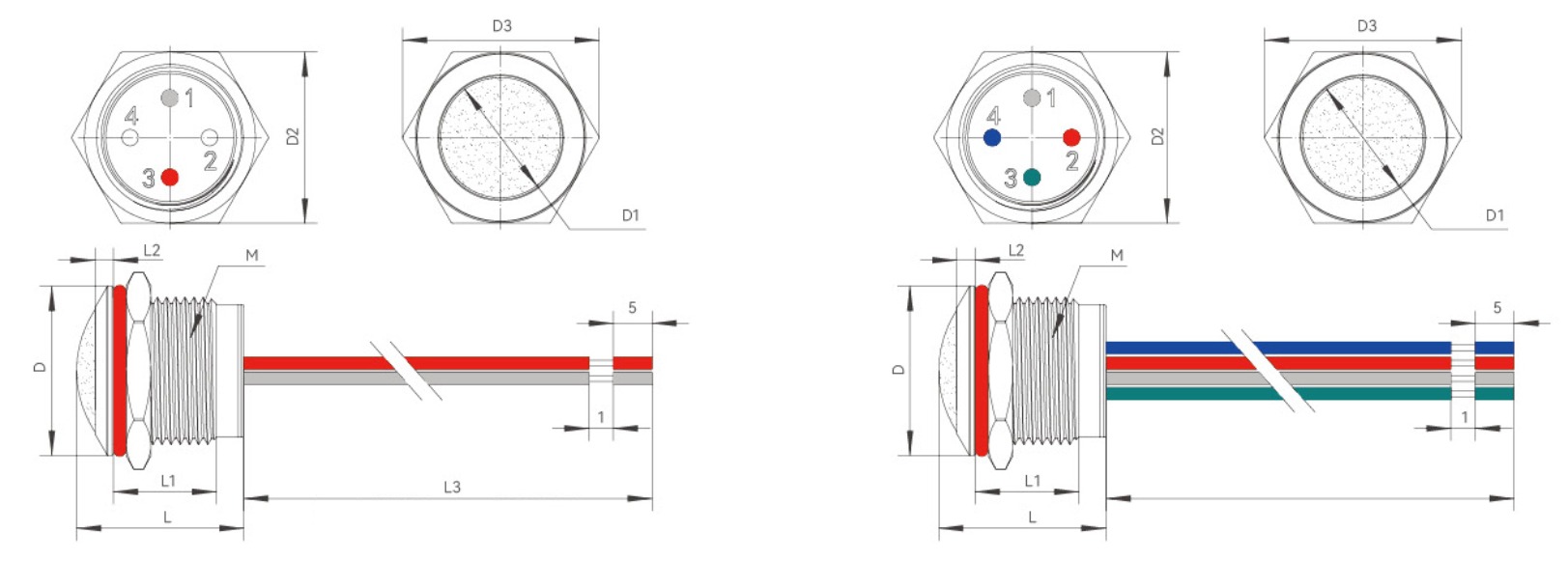

External Dimensions:
Parameters of the switch
Mounting hole diameter 12mm/16mm/19mm/22mm/25mm
Dielectric strength ≥100M 500VDC/h
Lamp bead current 2mA~20mA
PIN pin style Lead wire 26AWG/150mm
Waterproof rating IP67 on the end face
Ambient temperature -30℃~85℃
Base material Modified nylon PA66
Housing material SUS304/Brass nickel-plated/aluminum alloy anodized
Lamp bead voltage AC/DC:3.3V、6V、9V、12V、24V、36V、48V、110V、220V
Compressive strength Pins and housings 800VAC 20mA/min
Electrical life 40000h≈40,000 times
Glowing color R-Red G-Green B-BueY-Yelow W-White
(Dual color luminescence can be customized)
Lampshade material PC

Model/Size code M D D1 D2 D3 D4 L L1 L2 L3
WD12L M12×0.75 13.9±0.1 9.9±0.1 14±0.1 15.8±0.2 12.1±0.1 14.2  8.5±0.1 1.5  150
WD16L M16×1 17.9±0.1 15.9±0.1 16±0.1 21.5±0.2 16.1±0.1 13  8.5±0.1 1.5  150
WD19L M19×1 21.9±0.1 16.9±0.1 19±0.1 25±0.2 19.1±0.1 13.6  8.5±0.1 1.5  150
WD22L M22×1 24.9±0.1 19.9±0.1 22±0.1 28.5±0.2 22.1±0.1 14.5  8.5±0.1 1.5  150
WD25L M25×1 27.9±0.1 19.9±0.1 25±0.1 32±0.2 25.1±0.1 14.5  8.5±0.1 1.5  150

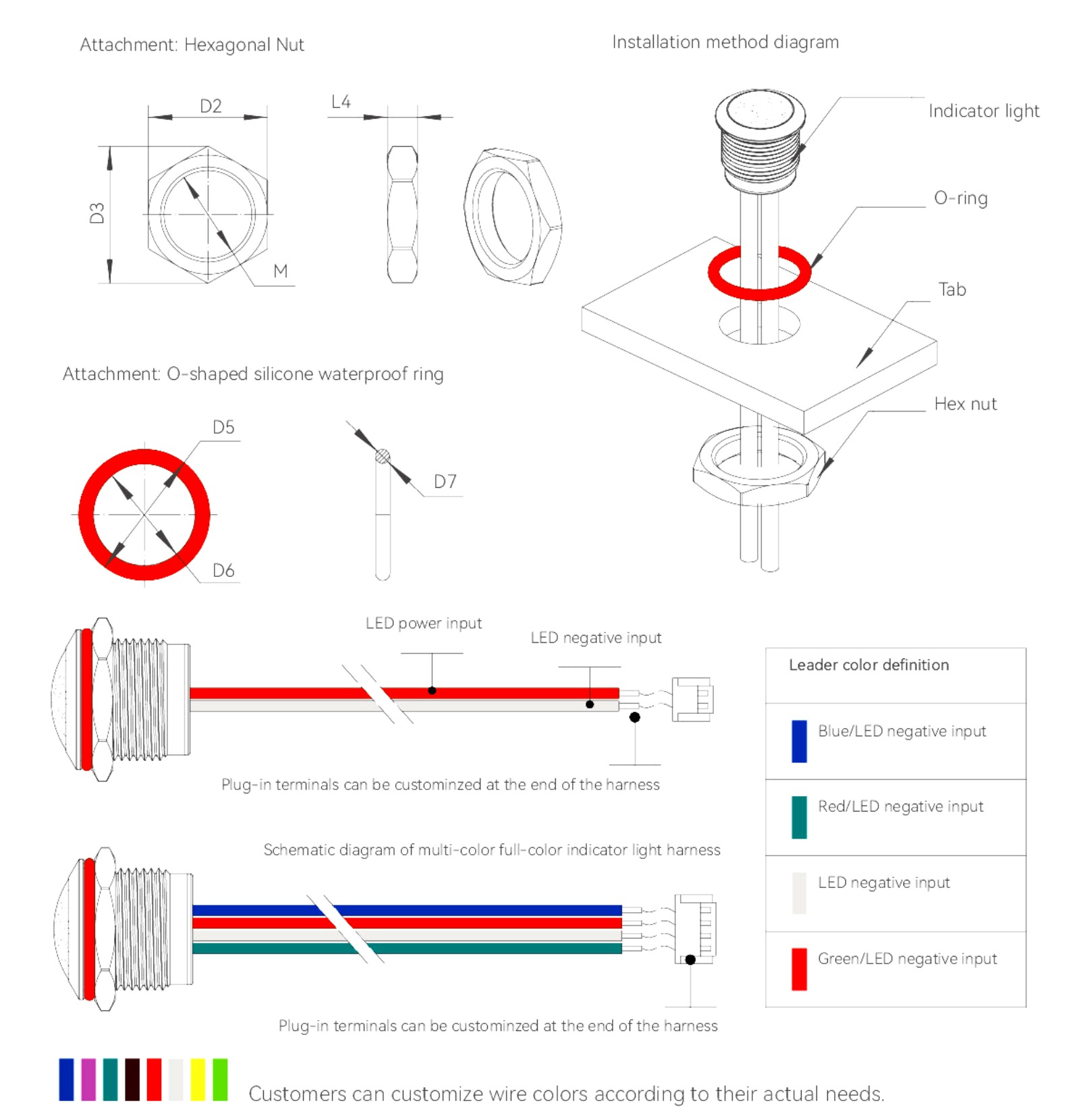

The type of key:

Model/Size code M L4 D2 D3 D5 D6 D7
WD12L M12×0.75 2±0.2 14±0.1 15.8±0.2 12  9.6  1.2
WD16L M16×1 2.5±0.2 16±0.1 21.5±0.2 14  11.2  1.4
WD19L M19×1 2.7±0.2 19±0.1 25±0.2 19  16  1.5
WD22L M22×1 3±0.2 22±0.1 28.5±0.2 19  16  1.5
WD25L M25×1 3.5±0.2 25±0.1 32±0.2 23.5  19.9  1.8

Physical appearance:
  •              Metal Indicator Lights
