12mm 1NO Locking/Momentary Metal Button Switch

Product Overview
This compact 12 mm metal button switch features a versatile 1NO (normally open) contact configuration offering both locking (latching) and momentary operation modes. With optional socket wiring for dependable contact performance, and optional illumination (single-, dual- or multi-color LEDs), it fits varied user interfaces. Its finish and appearance are refined, combining brushed or plated metal to elevate product aesthetics, and it holds safety and environmental certifications.

Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd.
  • Lowtemperature Lowtemperature
  • Hightemperature Hightemperature
  • Flame retardant Flame retardant
  • Large keys Large keys
  • Multiple luminous colors Multiple luminous colors
  • Promise lamp beads Promise lamp beads
  • AC and DC AC and DC
  • Built-in buck resistor Built-in buck resistor
  • Built-in waterproof ring Built-in waterproof ring
Description Physical Appearance Contact Us
Product Description:

Product Details
Gold plated pins, large silver contacts
CNC processing, exquisite appearance
Large aperture,high brightness
Environmentally friendly sealing ring, brass nut

Product Features

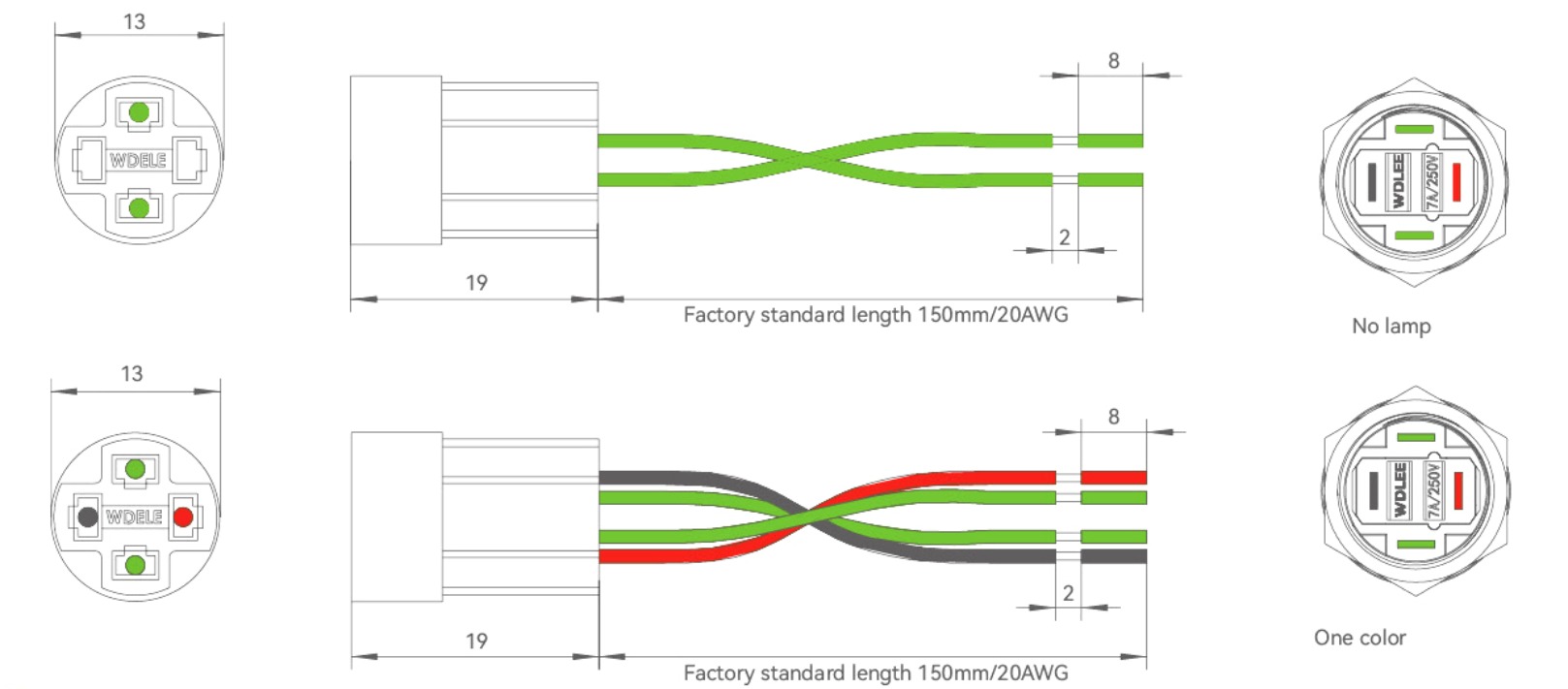

Optional wired socket connection to ensure contact performance;
The diameter of the operation button is increased, which has stable self-locking performance and comfortable operation feel;
It has a delicate metal texture and high-end appearance design;
The new structural design has stable on-off performance and improved the ability to resist welding deformation;
Waterproof level up to IP65 (customizable IP67/IP68);
Mechanical life: up to 1,000,000 cycles;
It can realize two-color, three-color, and multi-color luminescence;
Gold-plated pins improve oxidation resistance, and thickened silver dots increase electrical life;
It has applied for or obtained a number of patents, and has passed RoHS, CQC, CE certification.

Product Details:
  • Zhejiang Wandu Electric Co., Ltd. Gold-plated-pins-large-silver-contacts-3
  • Zhejiang Wandu Electric Co., Ltd. CNC-processing-exquisite-appearance-3
  • Zhejiang Wandu Electric Co., Ltd. Large-aperture-high-brightness-5
  • Zhejiang Wandu Electric Co., Ltd. Environmentally friendly sealing ring, brass nut

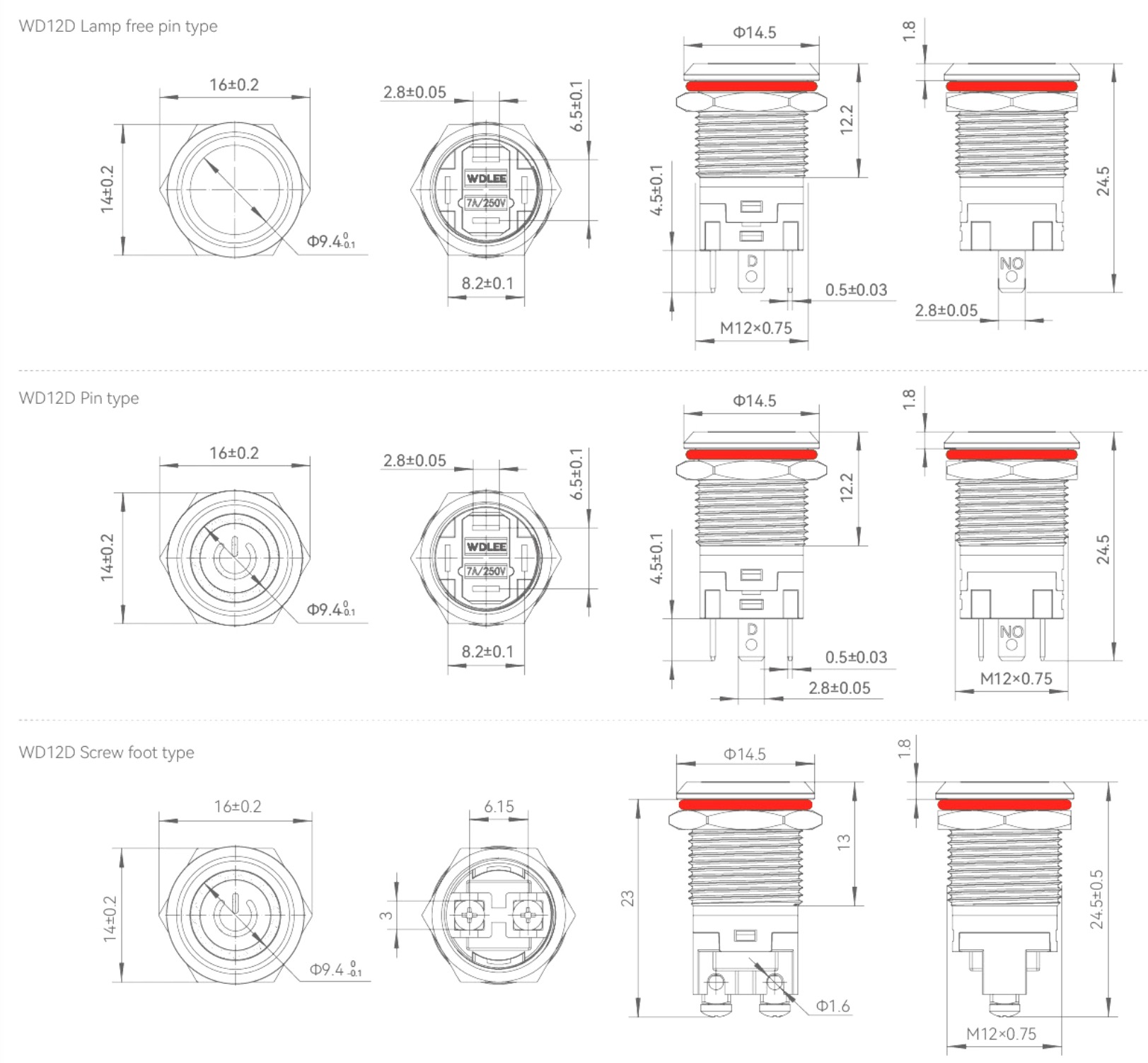

External Dimensions:

The type of key:

Physical appearance:

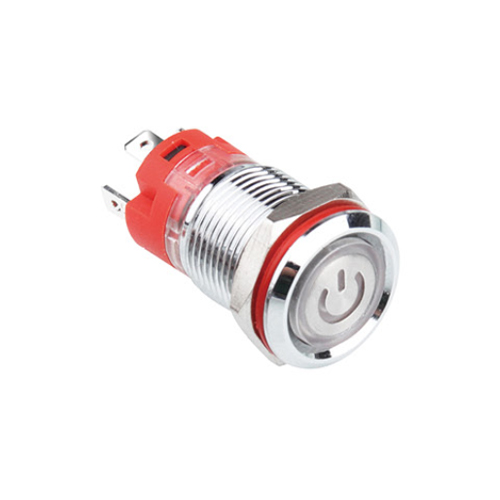

  •             WD12D-P1-EC-□□-S-2 Metal Pushbutton Switches WD12D-P1-EC-□□-S-2

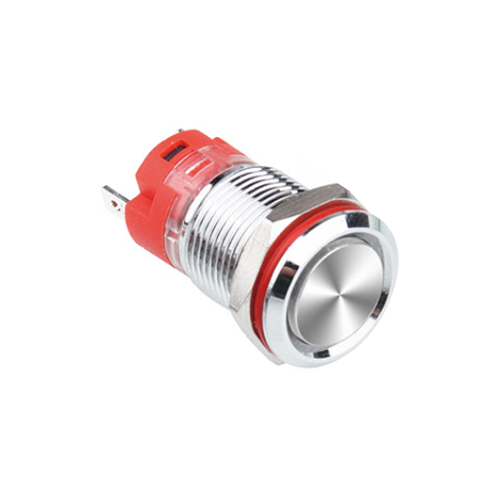

  •             WD12D-P1-S-2 Metal Pushbutton Switches WD12D-P1-S-2

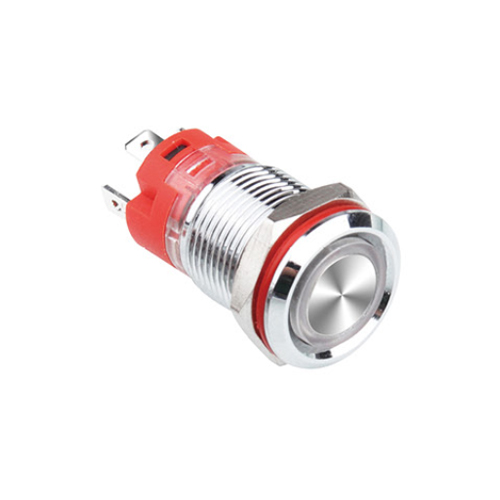

  •             WD12D-P1-E-□□-S-2 Metal Pushbutton Switches WD12D-P1-E-□□-S-2
