16mm Waterproof Short-travel Metal Button Switch

Product Overview
The 16 mm waterproof short-travel metal button switch delivers a generous button diameter for improved ergonomics, paired with precise actuation in harsh environments. With a travel distance slightly greater than ultra-short types (commonly ~2.5-3 mm), it offers a more substantial feel while still being responsive. Its waterproof sealing achieves IP65 or IP67 protection, safeguarding internal components from moisture and dust.

Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd.
  • Deep waterproofing Deep waterproofing
  • Ultra-shortprofile Ultra-shortprofile
  • Flame retardant Flame retardant
  • Easywiring Easywiring
  • Multiple luminous colors Multiple luminous colors
  • Promise lamp beads Promise lamp beads
  • AC and DC AC and DC
  • Built-in buck resistor Built-in buck resistor
  • Built-in waterproof ring Built-in waterproof ring
Description Physical Appearance Contact Us
Product Description:

Product Details
Gold-plated pin type, anti-oxidation
Connector type, easy wiring
Large aperture,high brightness
Environmentally friendly sealing ring, brass nut

Product Features
Optional wired socket connection to ensure contact performance and reduce labor waste;
The diameter of the operation button is increased, which has a comfortable operation feel;
It has a super metallic texture and high-end appearance design;
The new structural design has stable on-off performance and improved the ability to resist welding deformation;
Waterproof IP67 at the end of the button;
Mechanical life: up to 50W times;
It can realize two-color, three-color and multi-color luminescence;
Gold-plated pins improve oxidation resistance, ultra-short design, save installation space;
It has applied for or obtained a number of patents, and has passed CQC and CE certification.

Product Details:
  • Zhejiang Wandu Electric Co., Ltd. Gold-plated-pin-type-anti-oxidation
  • Zhejiang Wandu Electric Co., Ltd. Connector-type-easy-wiring-
  • Zhejiang Wandu Electric Co., Ltd. Large-aperture-high-brightness-3
  • Zhejiang Wandu Electric Co., Ltd. Environmentally friendly sealing ring, brass nut

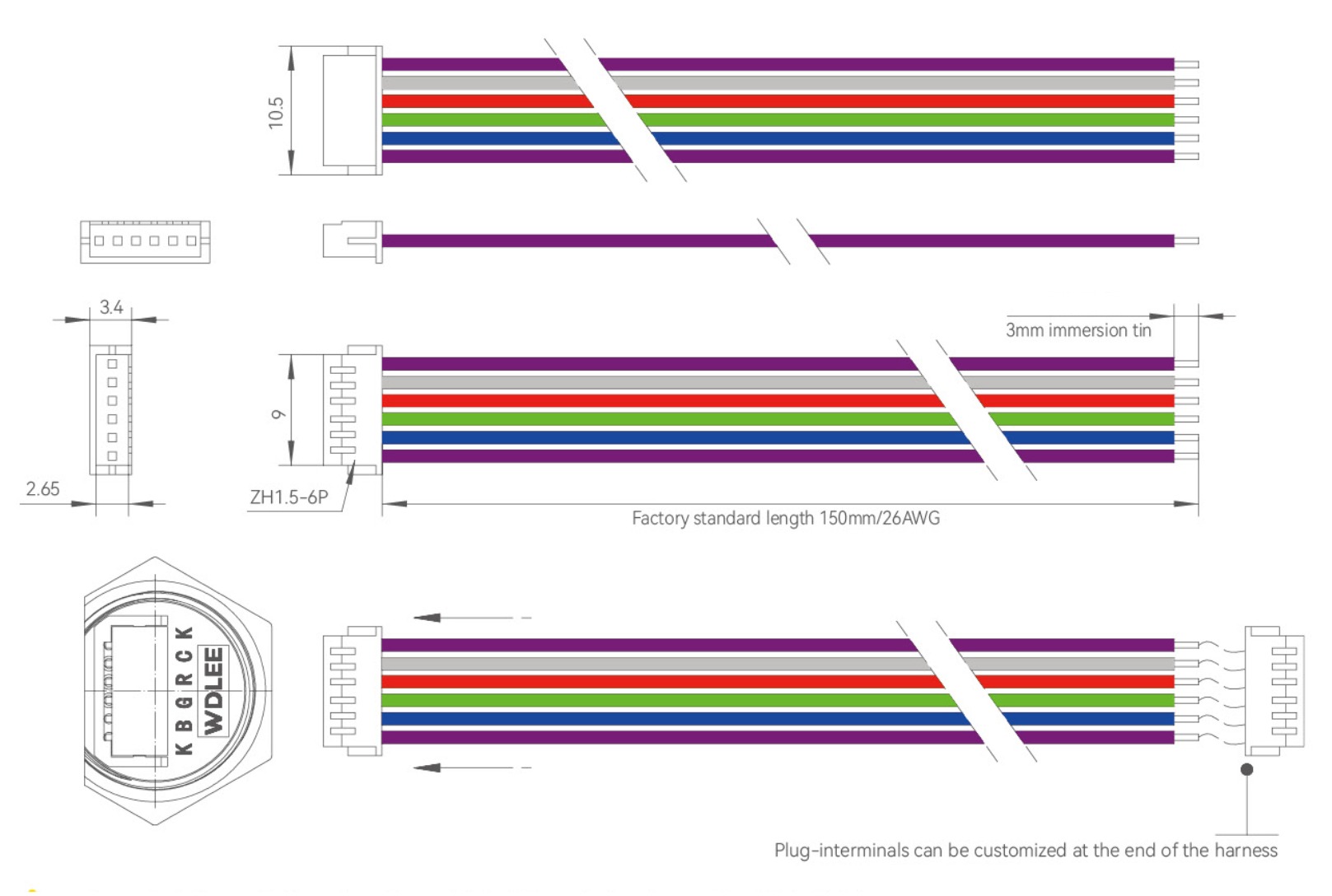

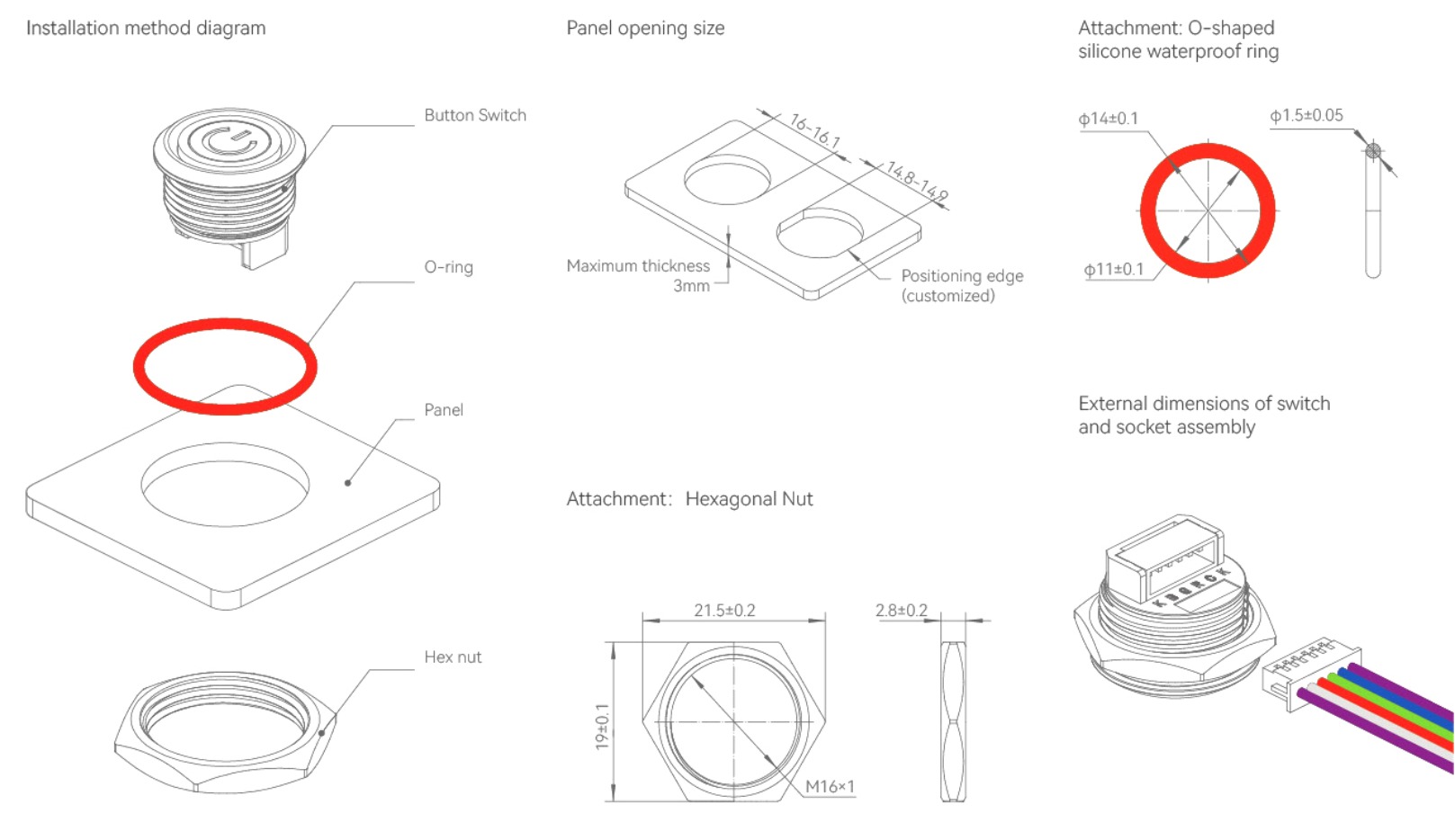

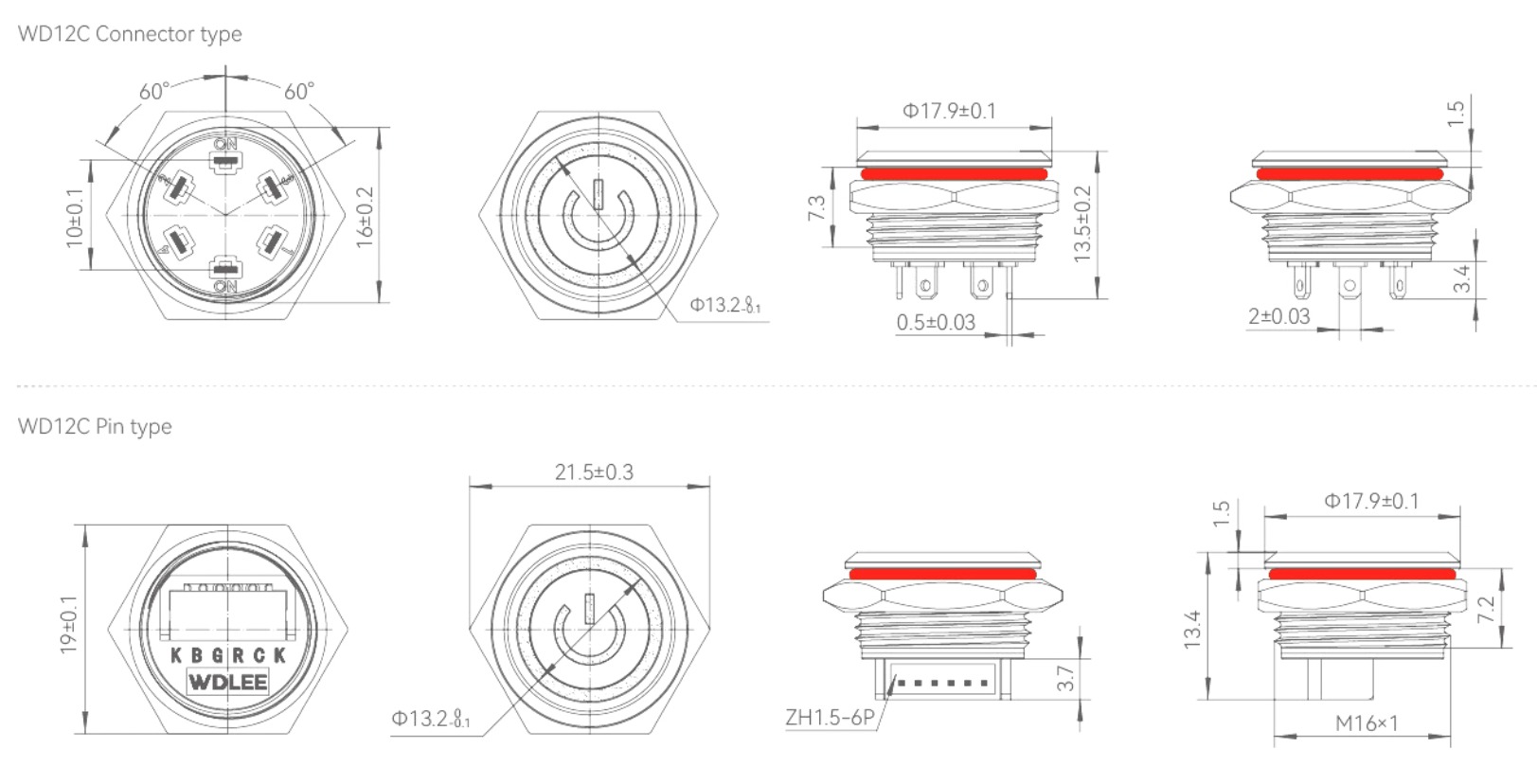

External Dimensions:

The type of key:

Physical appearance:

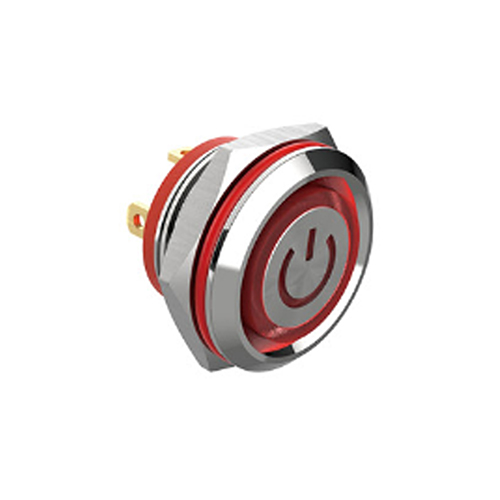

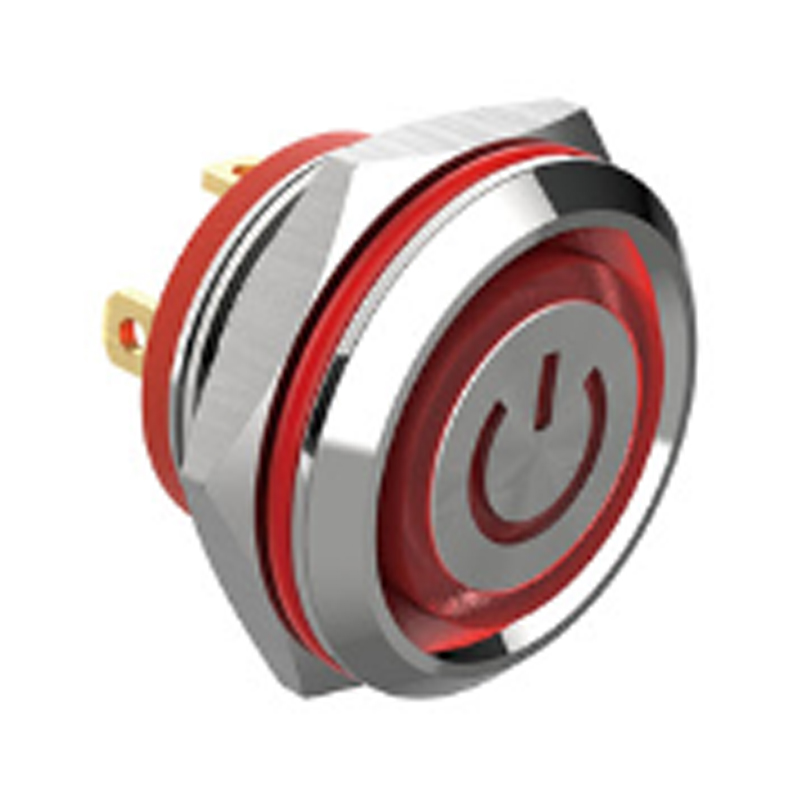

  •             WD16C-P1-EC-□□-S Metal Pushbutton Switches WD16C-P1-EC-□□-S

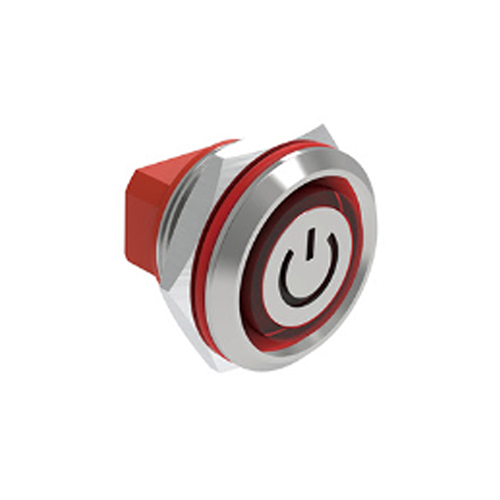

  •             WD16C-P2-EC-□□-S Metal Pushbutton Switches WD16C-P2-EC-□□-S

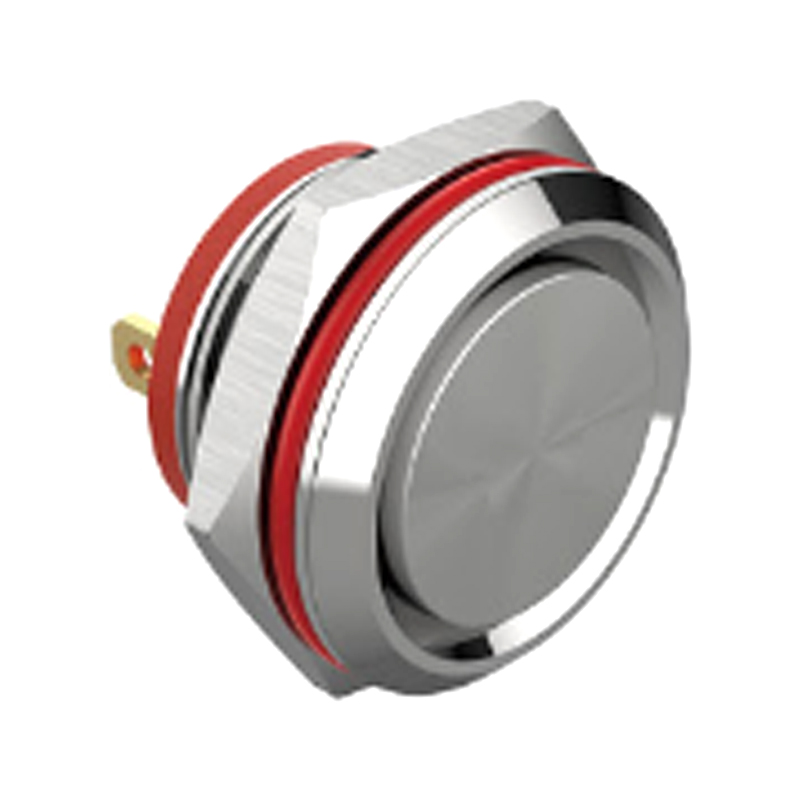

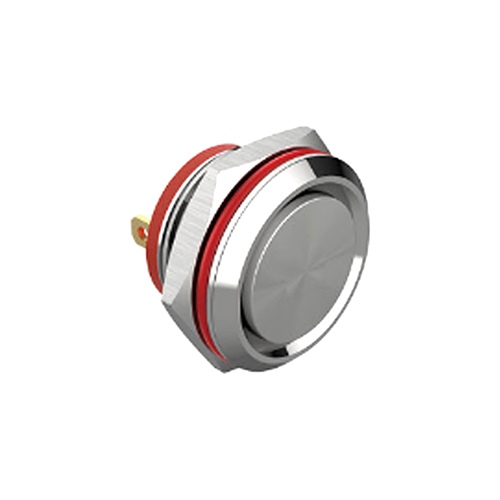

  •             WD16C-P1-S Metal Pushbutton Switches WD16C-P1-S

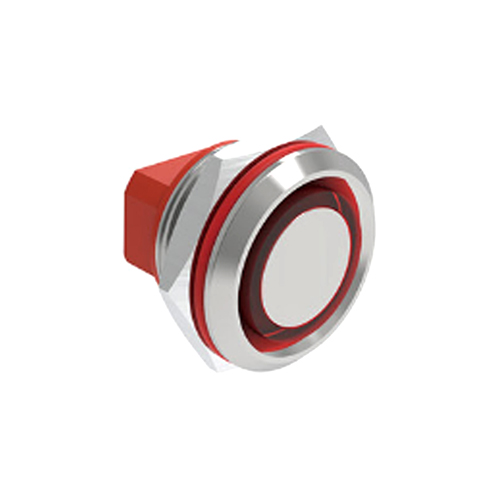

  •             WD16C-P2-E-□□-S Metal Pushbutton Switches WD16C-P2-E-□□-S

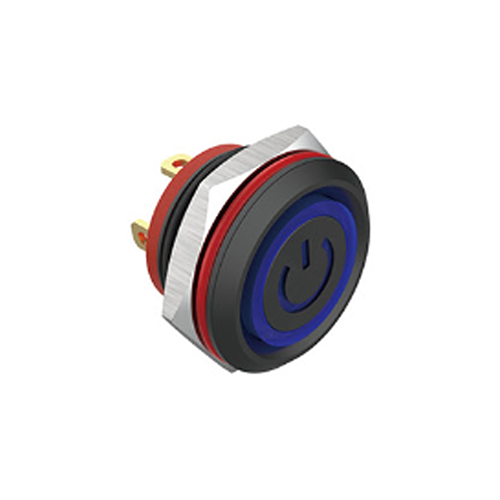

  •             WD16C-P1-EC-□□-A Metal Pushbutton Switches WD16C-P1-EC-□□-A

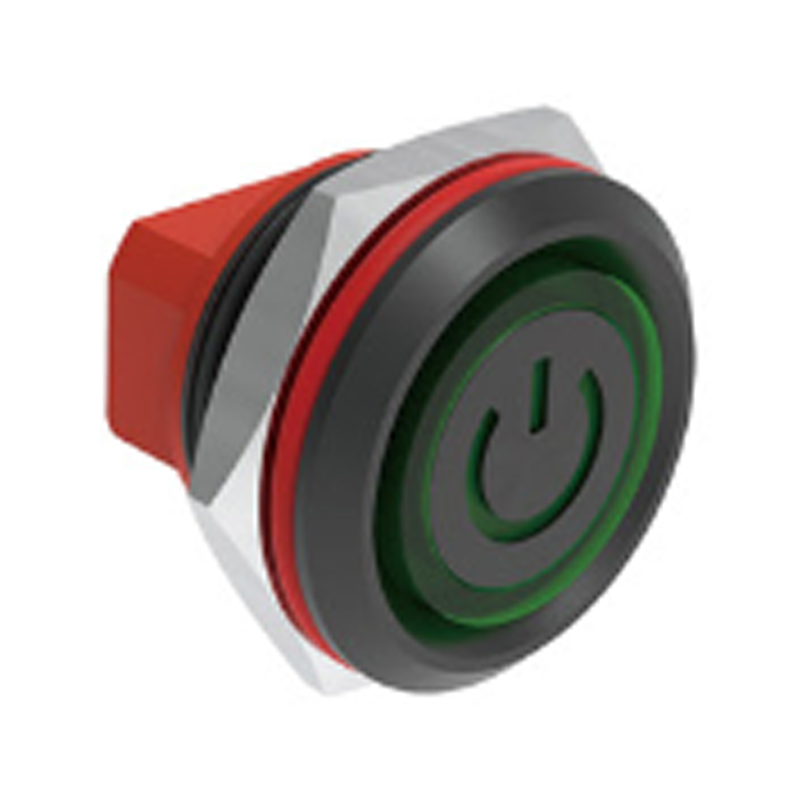

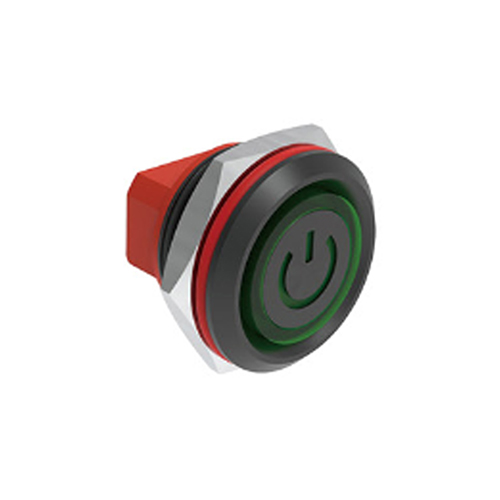

  •             WD16C-P2-EC-□□-A Metal Pushbutton Switches WD16C-P2-EC-□□-A

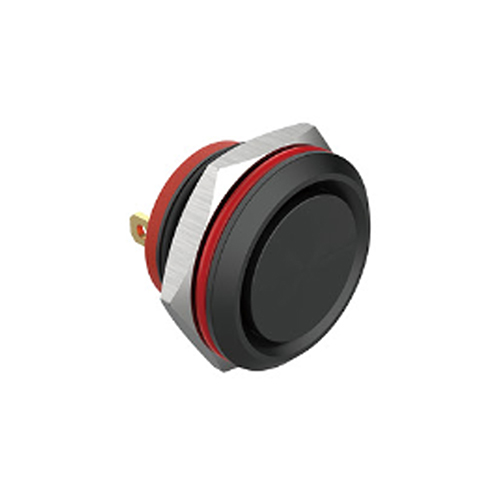

  •             WD16C-P1-A Metal Pushbutton Switches WD16C-P1-A

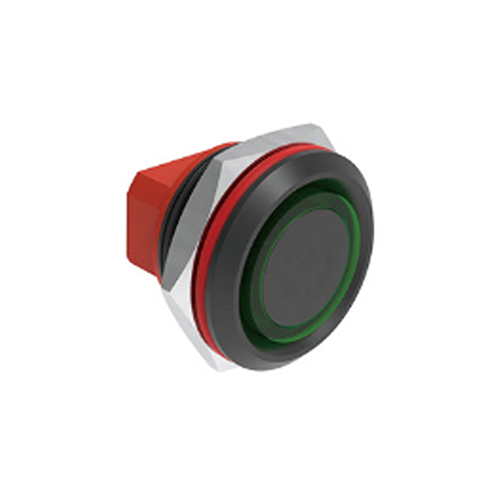

  •             WD16C-P2-E-□□-A Metal Pushbutton Switches WD16C-P2-E-□□-A
