2-3 Position Selector Metal Rotary Push Button
Home / Products / Metal Pushbutton Switches / 2-3 Position Selector Metal Rotary Push Button
  • 2-3 Position Selector Metal Rotary Push Button
  • 2-3 Position Selector Metal Rotary Push Button
  • 2-3 Position Selector Metal Rotary Push Button
  • 2-3 Position Selector Metal Rotary Push Button

2-3 Position Selector Metal Rotary Push Button

Product Overview
The 2-3 Position Selector Metal Rotary Push Button is a rotary selector combining push-button action with multi-position switching (2 or 3 positions), providing versatile control for multi‐mode equipment. Fabricated with precision metal construction, it ensures a tactile, stable rotary action plus a push-to-select or push-to-release actuation, depending on configuration. Gold-plated pins enhance oxidation resistance, while thick silver dots at the contact interface improve electrical life.

Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd.
  • Waterprooflevel Waterprooflevel
  • Second-Thirdgearoptional Second-Thirdgearoptional
  • Flame retardant Flame retardant
  • Big silver contact Big silver contact
  • Multiple luminous colors Multiple luminous colors
  • Promise lamp beads Promise lamp beads
  • AC and DC AC and DC
  • Built-in buck resistor Built-in buck resistor
  • Built-in waterproof ring Built-in waterproof ring
Description Physical Appearance Contact Us
Product Description:

Product Details
Gold plated pins, large silver contacts
CNC processing, exquisite appearance
Large aperture,high brightness
Environmentally friendly sealing ring, brass nut

Product Features
Optional wired socket connection to ensure contact performance;
The diameter of the operation button is increased, which has stable self-locking performance and comfortable operation feel;
It has a delicate metal texture and high-end appearance design;
The new structural design has stable on-off performance and improved the ability to resist welding deformation;
Waterproof level up to IP65 (customizable IP67/IP68);
Mechanical life: up to 1,000,000 cycles;
It can realize two-color, three-color, and multi-color luminescence;
Gold-plated pins improve oxidation resistance, and thickened silver dots increase electrical life;
It has applied for or obtained a number of patents, and has passed RoHS, CQC, CE certification.

Product Details:
  • Zhejiang Wandu Electric Co., Ltd. Gold-plated-pins-large-silver-contacts
  • Zhejiang Wandu Electric Co., Ltd. CNC-processing-exquisite-appearance
  • Zhejiang Wandu Electric Co., Ltd. Large-aperture-high-brightness
  • Zhejiang Wandu Electric Co., Ltd. Environmentally friendly sealing ring, brass nut

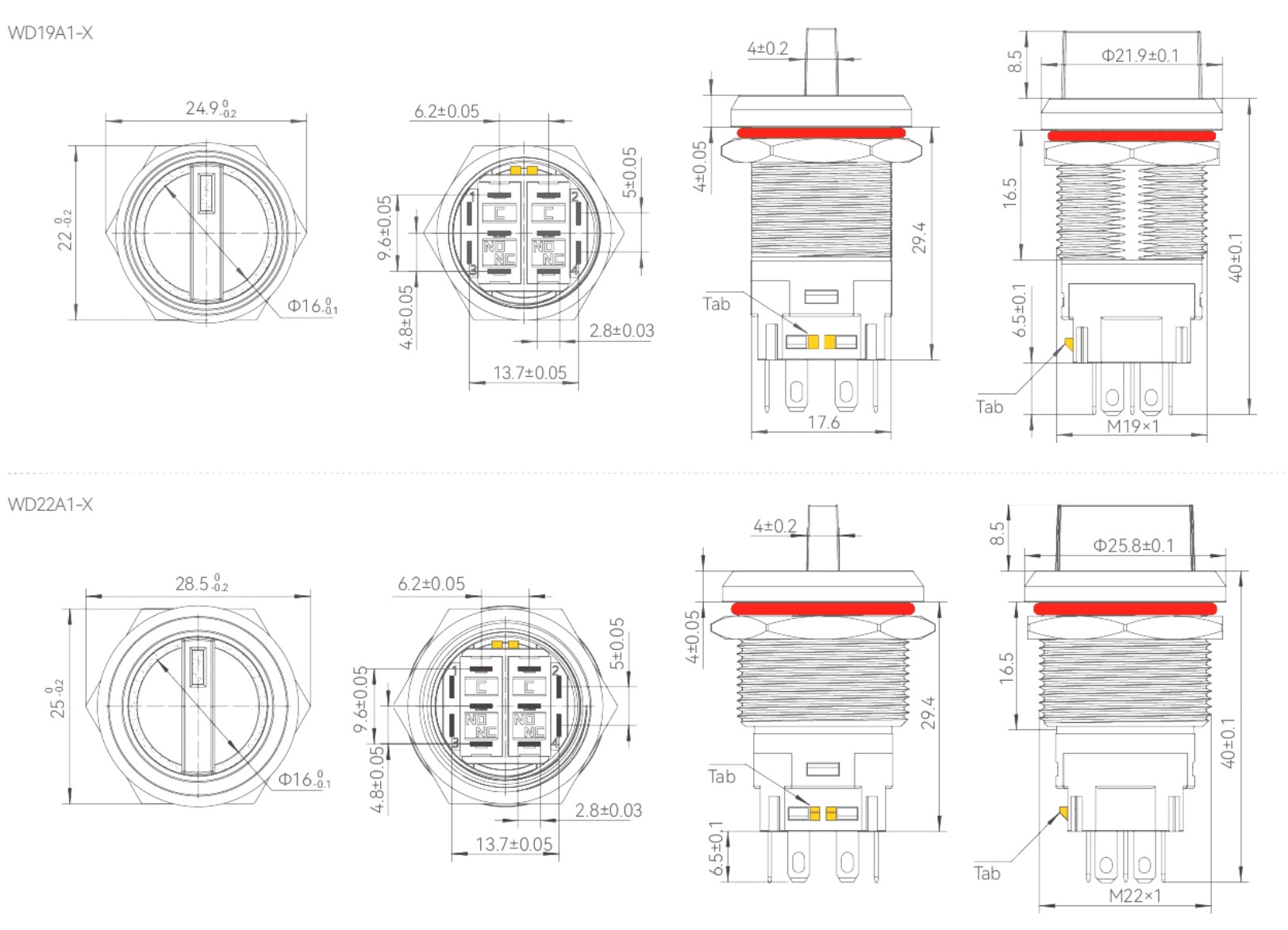

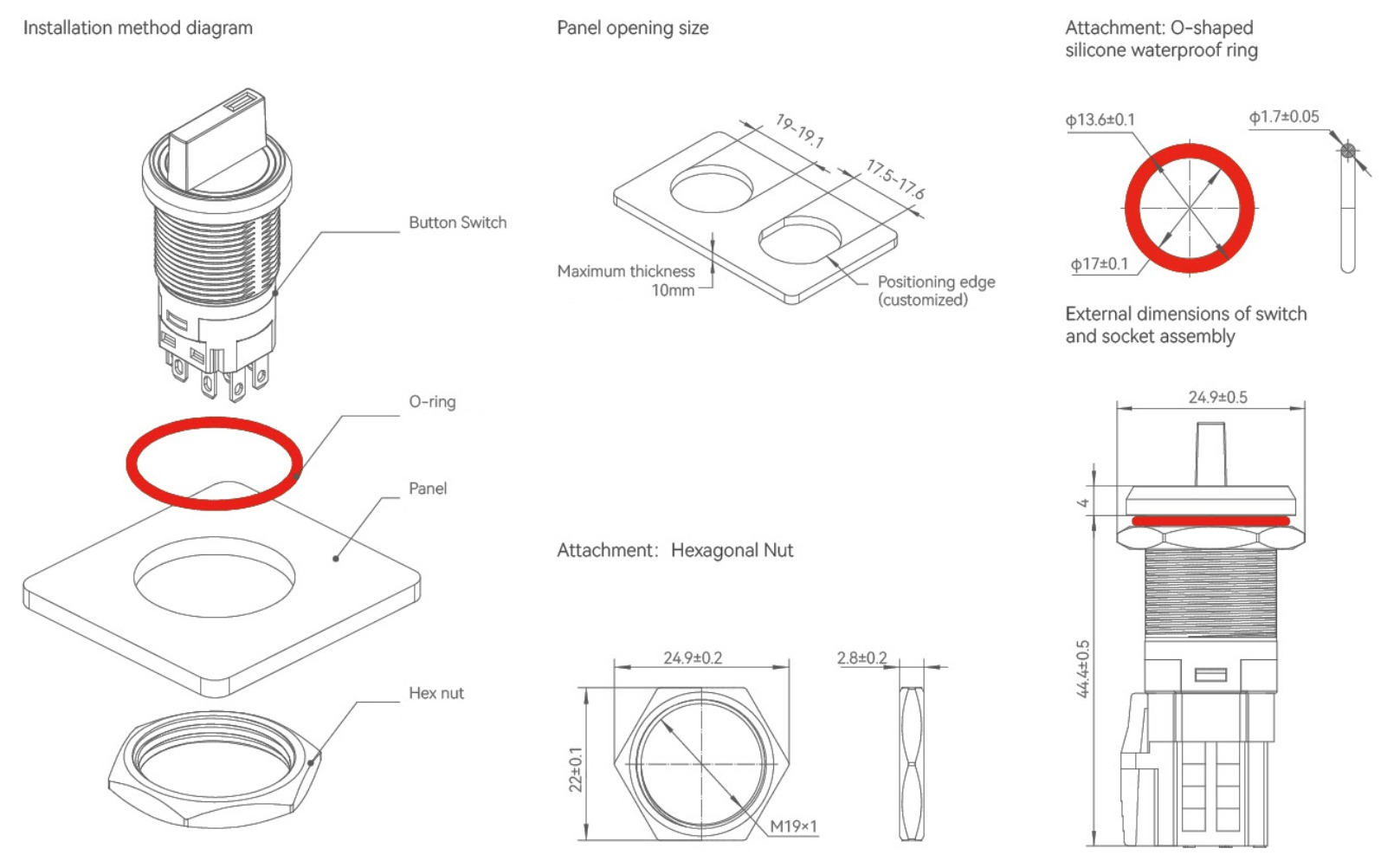

External Dimensions:

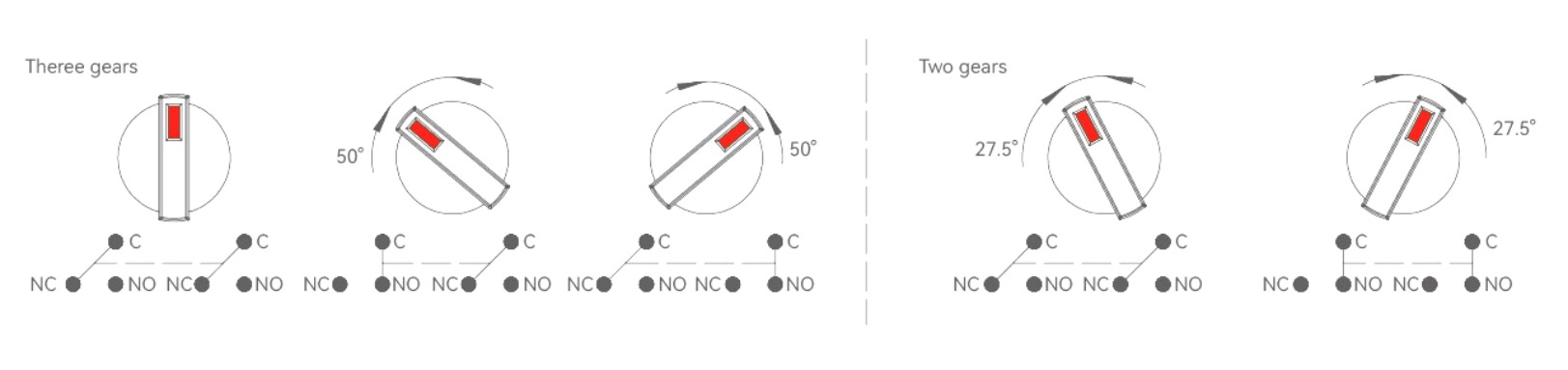

The type of key:

Physical appearance:
