19mm 7Pin/5Pin Metal Push Button Switch

Product Overview
This 19 mm metal push button switch features either 7-pin or 5-pin configurations, offering flexibility for complex circuits where multiple connections or logic signals are required. The larger 19 mm diameter affords a more tactile actuation feel, combined with a self-locking mechanism for latching operation. Robust metal construction delivers an elegant appearance and strong resistance to mechanical wear. IP65 waterproofing ensures dust and water resistance; mechanical endurance reaches up to 1,000,000 cycles.

Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd.
  • Deep waterproofing Deep waterproofing
  • Large keys Large keys
  • Flame retardant Flame retardant
  • Big silver contact Big silver contact
  • Multiple luminous colors Multiple luminous colors
  • Promise lamp beads Promise lamp beads
  • AC and DC AC and DC
  • Built-in buck resistor Built-in buck resistor
  • Built-in waterproof ring Built-in waterproof ring
Description Physical Appearance Contact Us
Product Description:

Product Details
Gold-plated pins, large silver contacts
CNC processing, exquisite appearance
Large aperture, high brightness
Environmentally friendly sealing ring, brass nut

Product Features: An optional wired socket connection to ensure contact performance.
The diameter of the operation button has been increased, providing stable self-locking performance and a comfortable operation feel.
It has a delicate metal texture and a high-end appearance.
The new structural design has stable on-off performance and improved the ability to resist welding deformation.
Waterproof level up to IP65 (customizable IP67/IP68);
Mechanical life: up to 1,000,000 cycles;
It can realize two-color, three-color, and multi-color luminescence;
Gold-plated pins improve oxidation resistance, and thickened silver dots increase electrical life.
It has applied for or obtained several patents and has passed the RoHS, CQC, and CE certifications.

Product Details:
  • Zhejiang Wandu Electric Co., Ltd. Gold plated pins, large silver contacts
  • Zhejiang Wandu Electric Co., Ltd. CNC processing, exquisite appearance
  • Zhejiang Wandu Electric Co., Ltd. Large aperture, high brightness
  • Zhejiang Wandu Electric Co., Ltd. Environmentally friendly sealing ring, brass nut

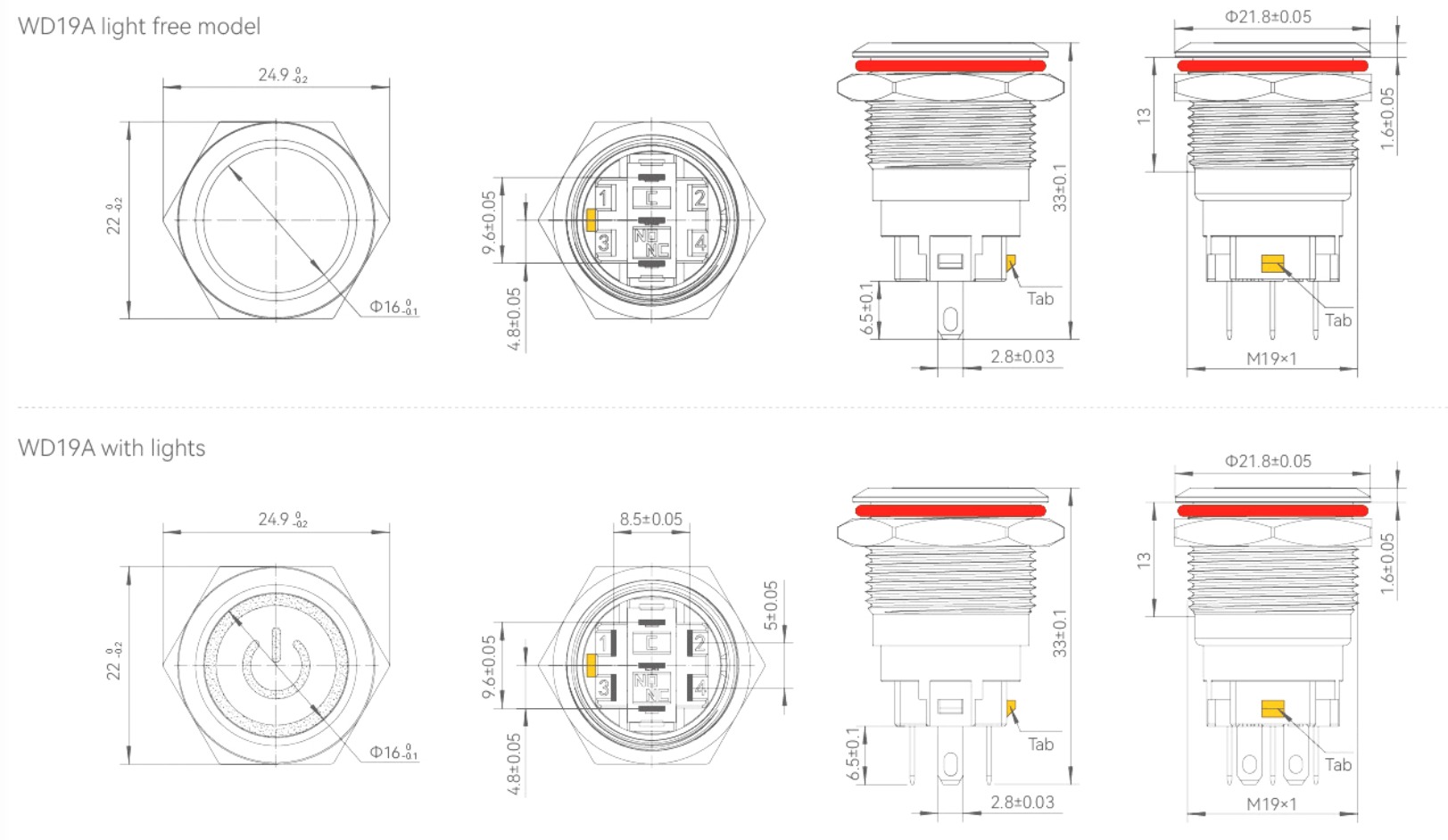

External Dimensions:

The type of key:

Physical appearance:

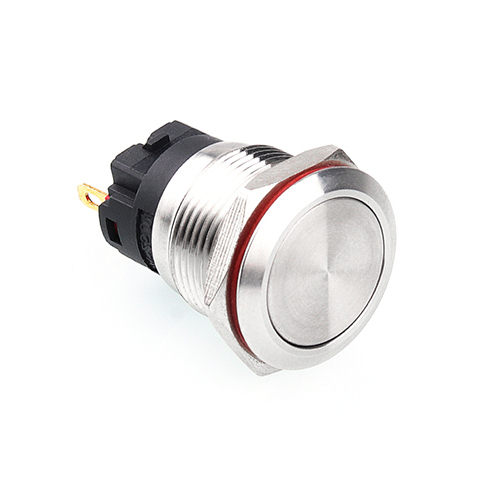

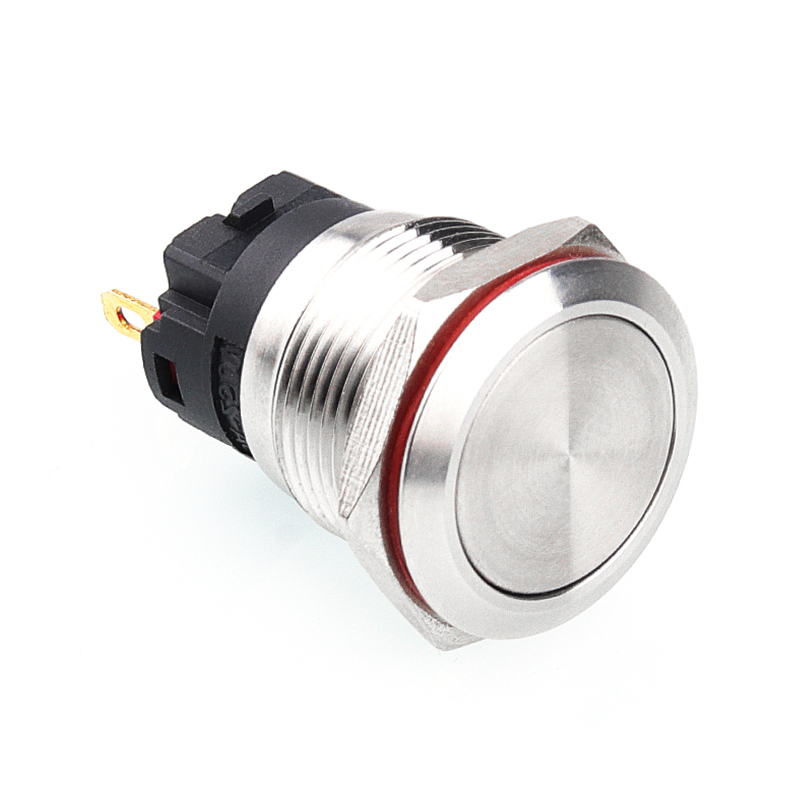

  •             WD19A-P11-S-1 Metal Pushbutton Switches WD19A-P11-S-1

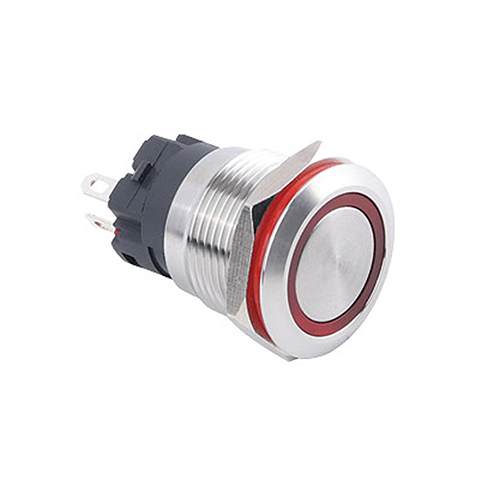

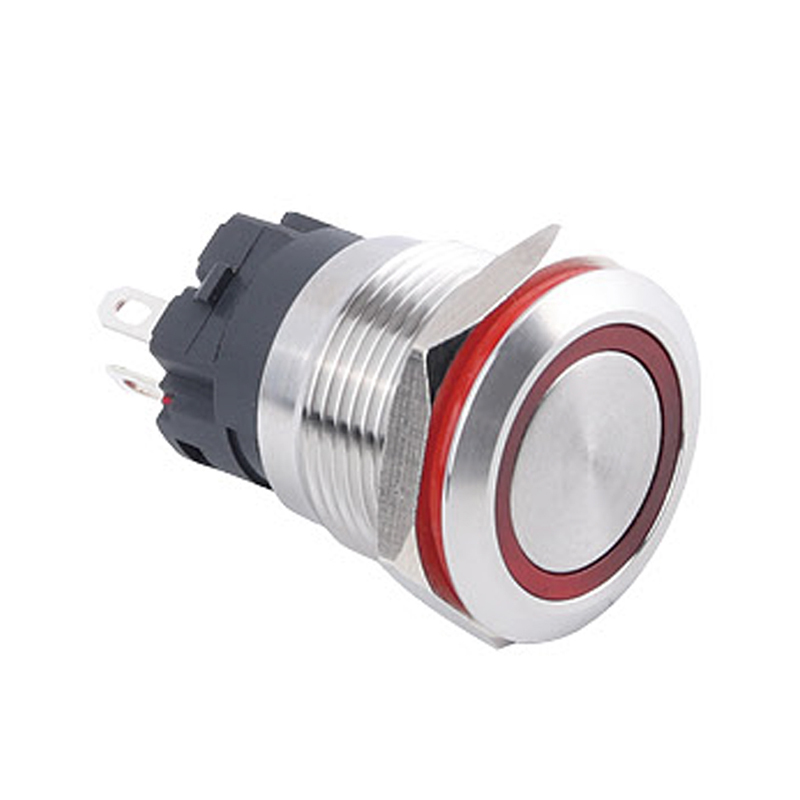

  •             WD19A-P11-E-口口-S-1 Metal Pushbutton Switches WD19A-P11-E-口口-S-1

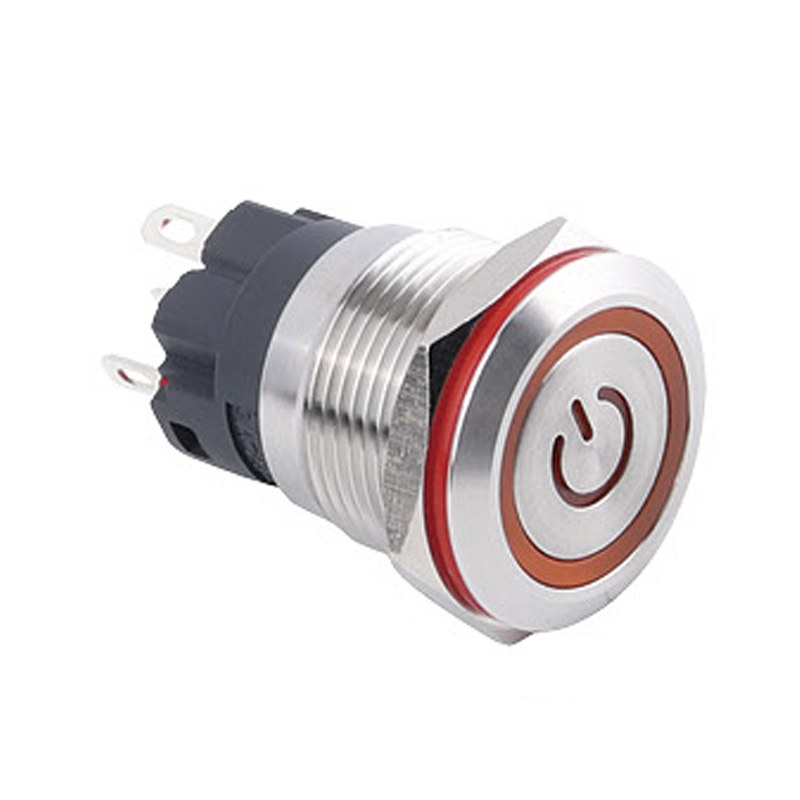

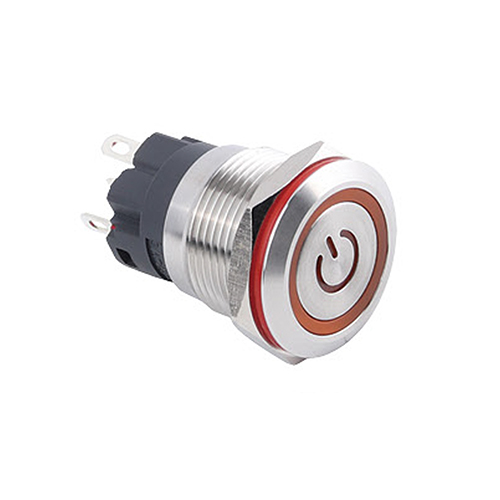

  •             WD19A-P11-EC-口口-S-1 Metal Pushbutton Switches WD19A-P11-EC-口口-S-1

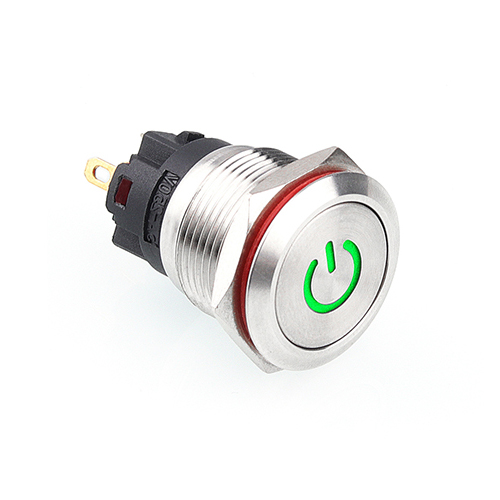

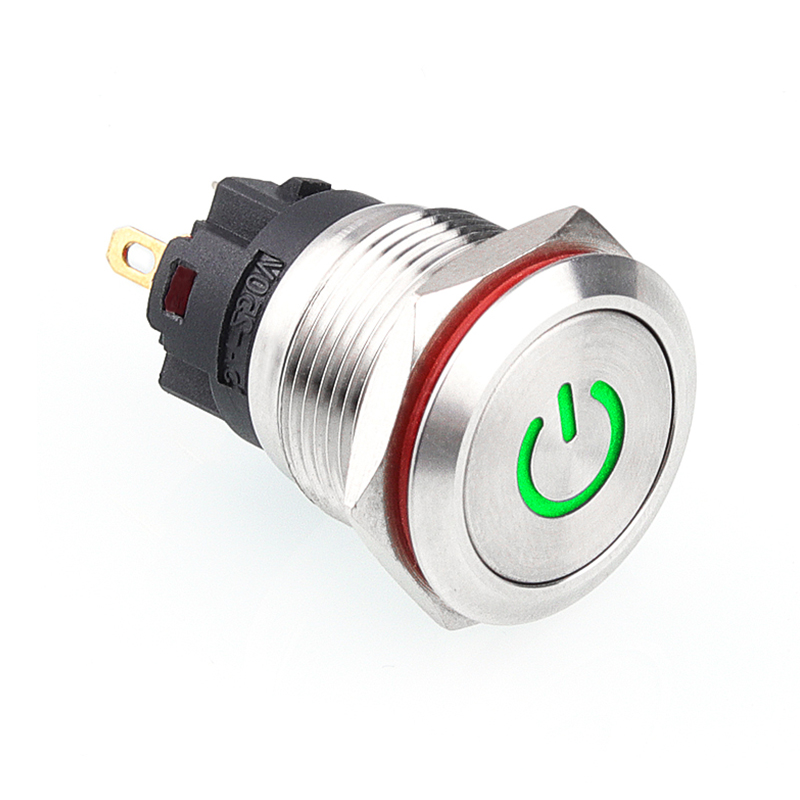

  •             WD19A-P11-C-口口-S-1 Metal Pushbutton Switches WD19A-P11-C-口口-S-1

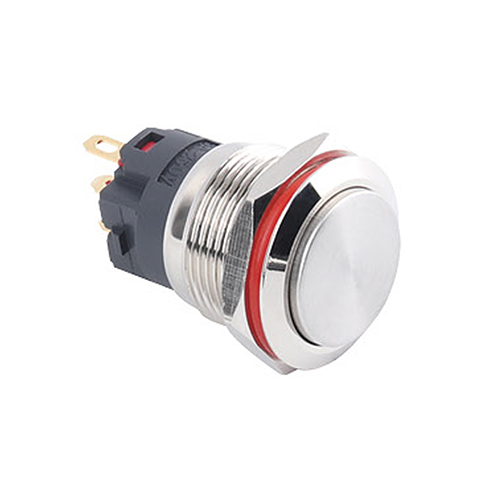

  •             WD19A-G11-S-1 Metal Pushbutton Switches WD19A-G11-S-1

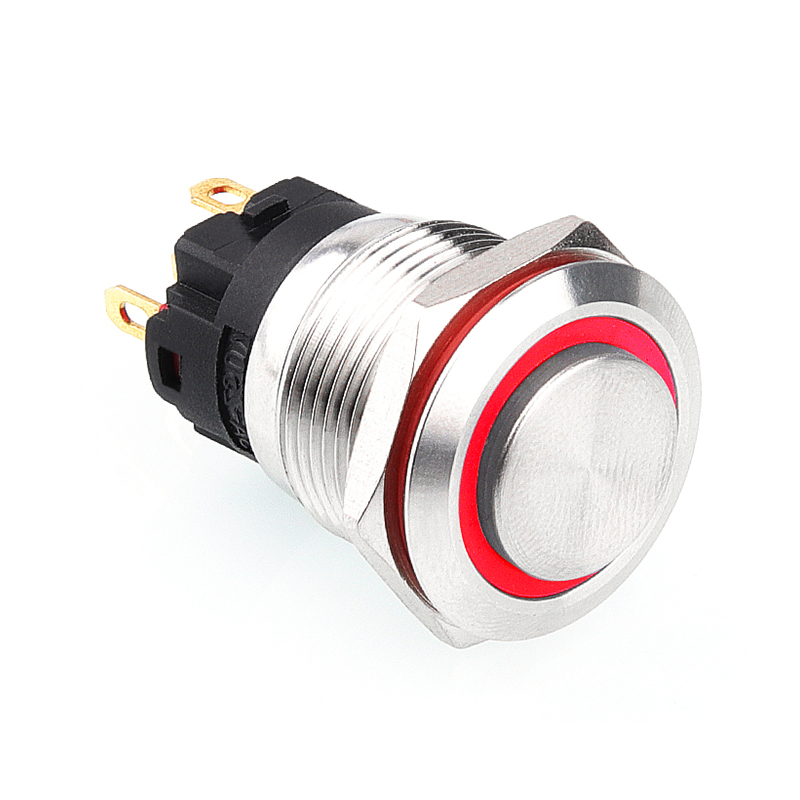

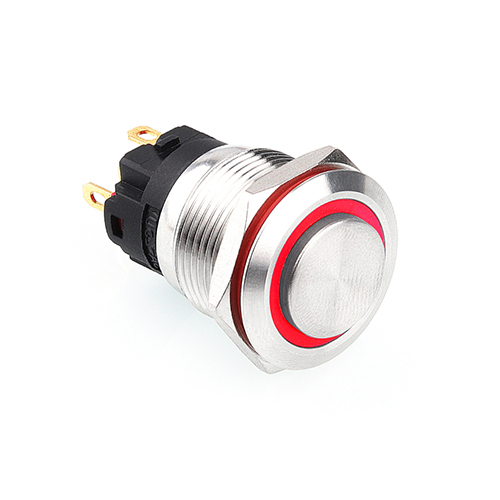

  •             WD19A-G11-E-口口-S-1 Metal Pushbutton Switches WD19A-G11-E-口口-S-1

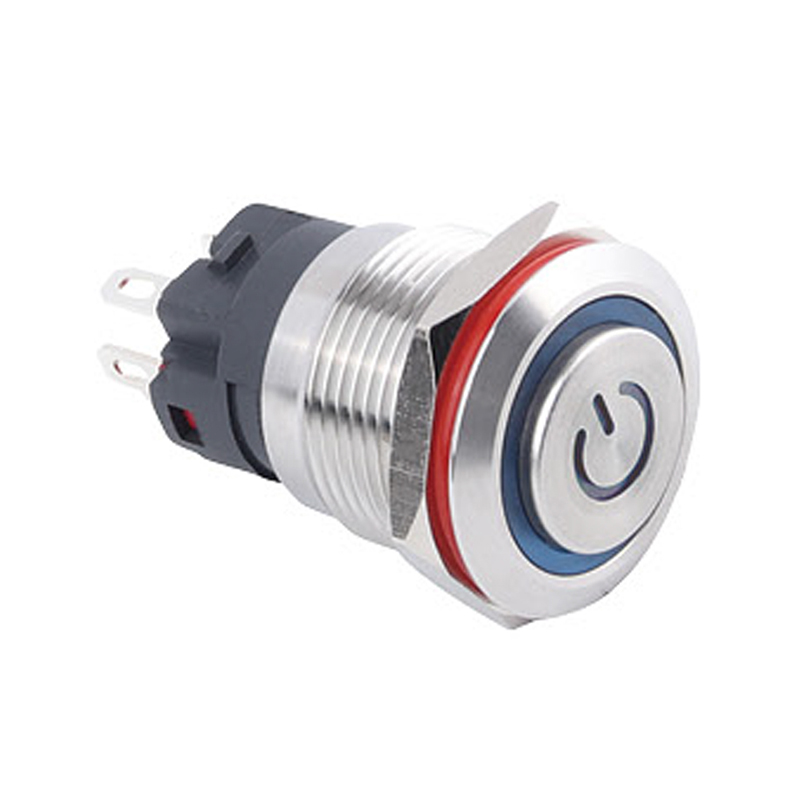

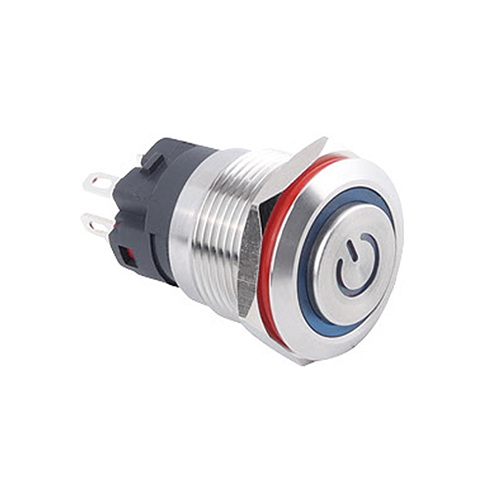

  •             WD19A-G11-EC-口口-S-1 Metal Pushbutton Switches WD19A-G11-EC-口口-S-1

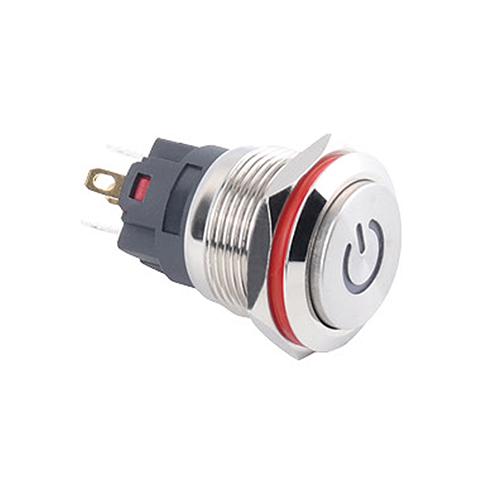

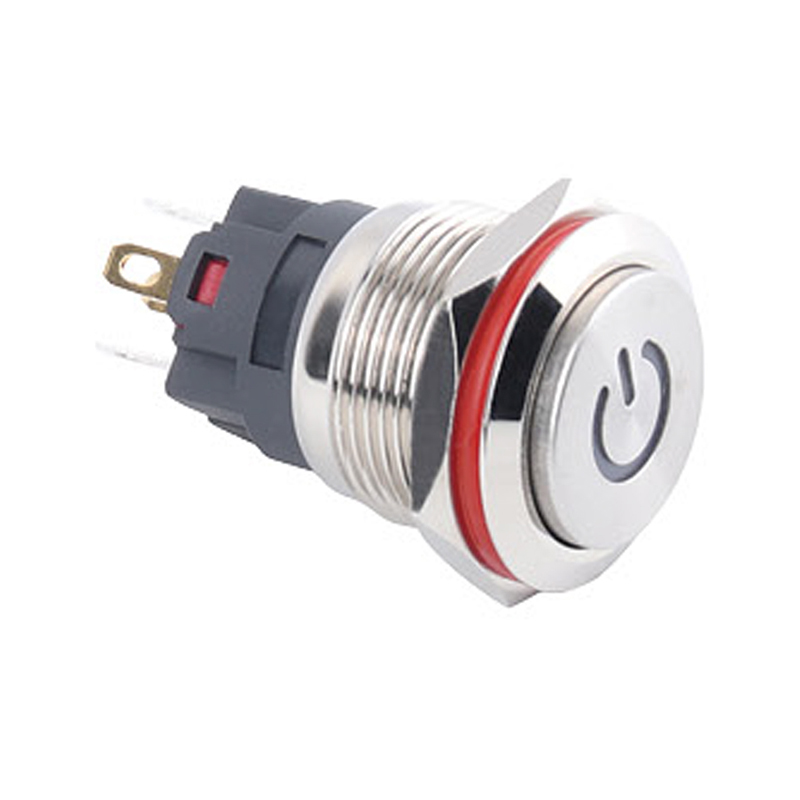

  •             WD19A-G11-C-口口-S-1 Metal Pushbutton Switches WD19A-G11-C-口口-S-1
