16mm/19mm IP68 Waterproof Touch Push Button Switch

Product Overview
The 16mm and 19mm IP68 waterproof touch push button switches are designed for demanding applications. These switches feature capacitive touch sensing technology, eliminating the need for mechanical components and enhancing their lifespan. Constructed with stainless steel or anodized aluminum, they offer robust resistance to corrosion and impact. The IP68 rating ensures complete protection against dust and immersion in water, making them suitable for outdoor, marine, and industrial applications. Available in momentary and latching configurations, these switches provide versatility to meet various operational needs. Additionally, they offer customizable LED illumination options, including bi-color red and green, to indicate operational status clearly.

Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd.
  • Deepwaterproofing Deepwaterproofing
  • Continuousvocalization Continuousvocalization
  • Flame retardant Flame retardant
  • Waterprooflevel Waterprooflevel
  • Multiple luminous colors Multiple luminous colors
  • Promise lamp beads Promise lamp beads
  • AC and DC AC and DC
  • Built-in buck resistor Built-in buck resistor
  • Built-in waterproof ring Built-in waterproof ring
Description Physical Appearance Contact Us
Product Description:

Product Details
Uniform thickness of the outer garment ensures electrical safety
CNC processing, exquisite appearance
Large aperture,high brightness
Environmentally friendly sealing ring, brass nut

Product Details:
  • Zhejiang Wandu Electric Co., Ltd. Uniform-thickness-of-the-outer-garment
  • Zhejiang Wandu Electric Co., Ltd. CNC-processing-exquisite-appearance-12
  • Zhejiang Wandu Electric Co., Ltd. Large-aperture-high-brightness-11
  • Zhejiang Wandu Electric Co., Ltd. Environmentally friendly sealing ring, brass nut

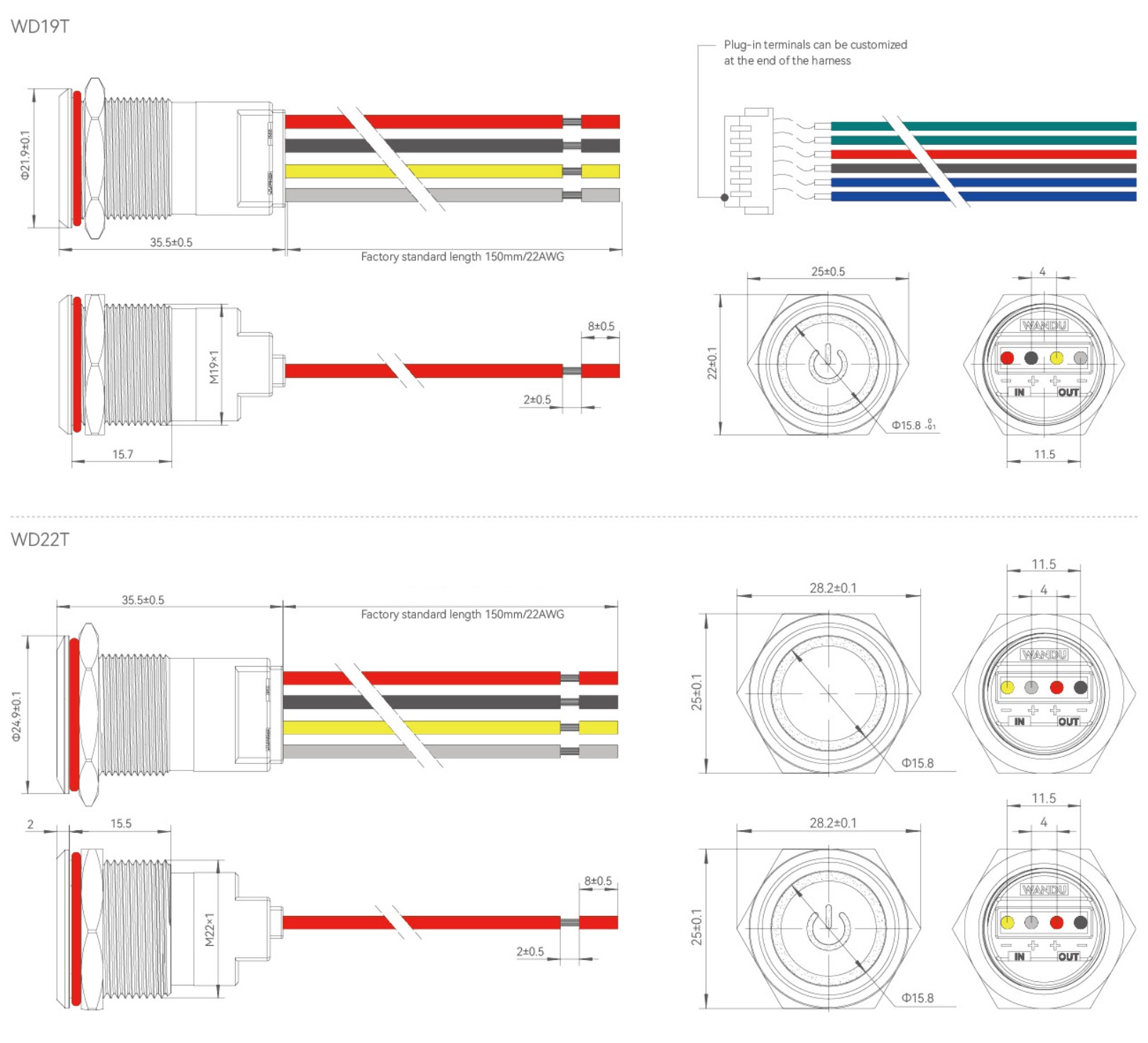

External Dimensions:

Parameters of the switch
Mounting hole diameter 19~19.1mm、22~22.1mm
Operating voltage DC 12V~24V
Operating Current: 15~35mA
Glowing color Factory standard red/green
Waterproof rating IP67 at the end of the button
Ambient temperature -30℃~85℃
Form of workerature Self-locking/jogging(optional)
Compressive strength Pins and housings 1900VAC 20mA/min
Base material Modified nylon PA66
Dielectric strength ≥100MQ 500VDC/h
PIN pin style Harness model 22AWG/length 150mm
Housing material SUS304/Brass nickel-plated/aluminum alloy anodized
End aperture material PC&SUS316
Glowingcolor R-Red G-Green B-Blue Y-Yellow W-White -Red-green
Customizable in other colors

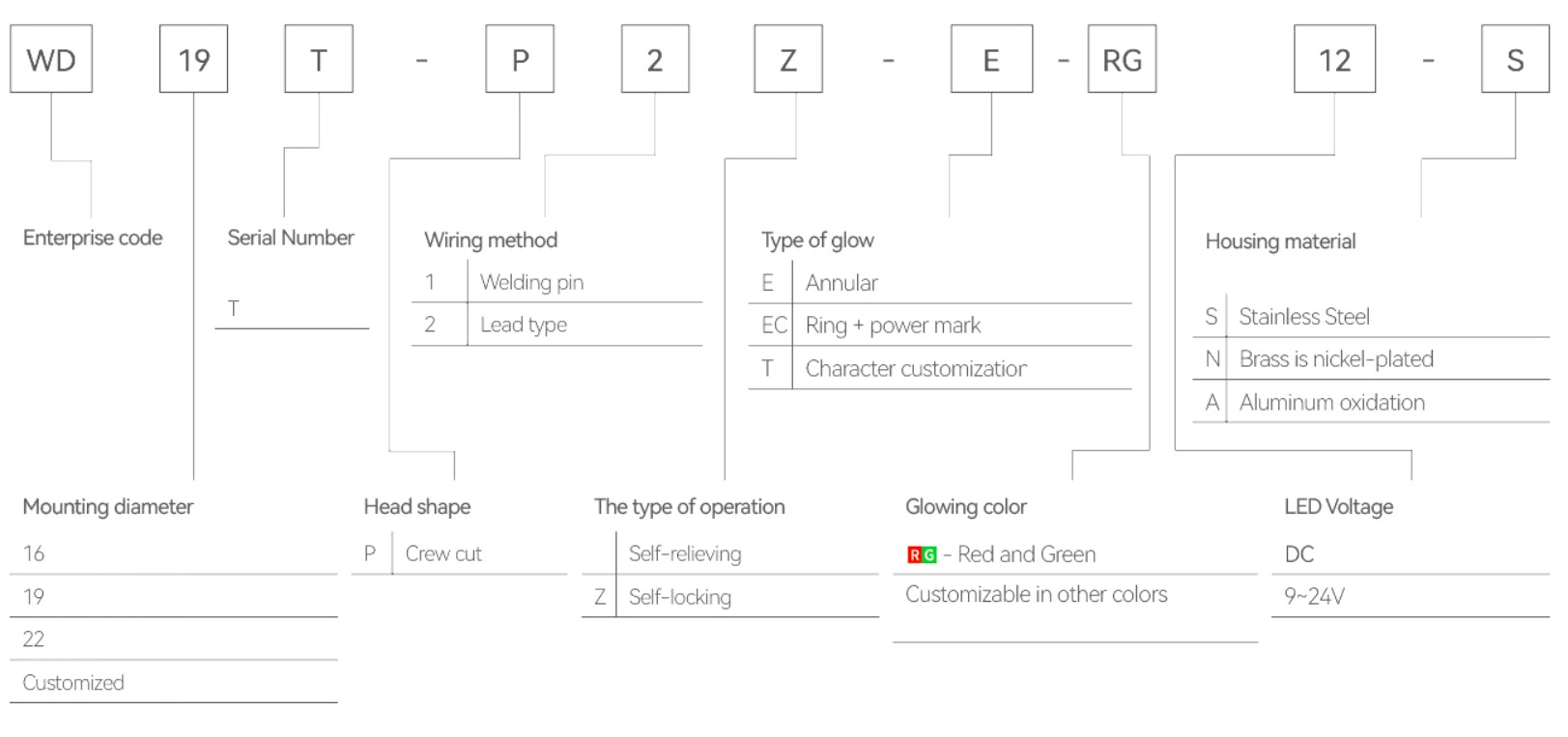

The type of key:

Physical appearance:
