16mm Waterproof Self Locking Emergency Stop Push Switch

Product Overview
The 16mm Waterproof Self-Locking Emergency Stop Push Switch is a compact yet robust safety device designed for critical applications requiring immediate shutdown capabilities. Featuring an IP65-rated waterproof housing, it ensures reliable performance in harsh environments, protecting against dust and water ingress. The self-locking mechanism secures the switch in the 'off' position until manually reset, preventing accidental reactivation. Its mushroom-shaped head provides a large, easily accessible surface for quick operation, even in emergency situations.

Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd.
  • Lowtemperature Lowtemperature
  • Hightemperature Hightemperature
  • Flame retardant Flame retardant
  • Safeandreliable Safeandreliable
  • Largeendface Largeendface
  • Leftandrightrotationlock Leftandrightrotationlock
  • AC and DC AC and DC
  • Built-in buck resistor Built-in buck resistor
  • Built-in waterproof ring Built-in waterproof ring
Description Physical Appearance Contact Us
Product Description:

Product Details
Gold plated pins, large silver contacts
PA66 material flame retardant and high temperature resistant
Featuring anti slip patterns for easy operation
Environmentally friendly sealing ring, brass nut

Product Details:
  • Zhejiang Wandu Electric Co., Ltd. Featuring-anti-slip-patterns-for-easy-operation
  • Zhejiang Wandu Electric Co., Ltd. Gold-plated-pins-large-silver-contacts-11
  • Zhejiang Wandu Electric Co., Ltd. PA66-material-flame-retardant-and-high-temperature-resistant
  • Zhejiang Wandu Electric Co., Ltd. Environmentally friendly sealing ring, brass nut

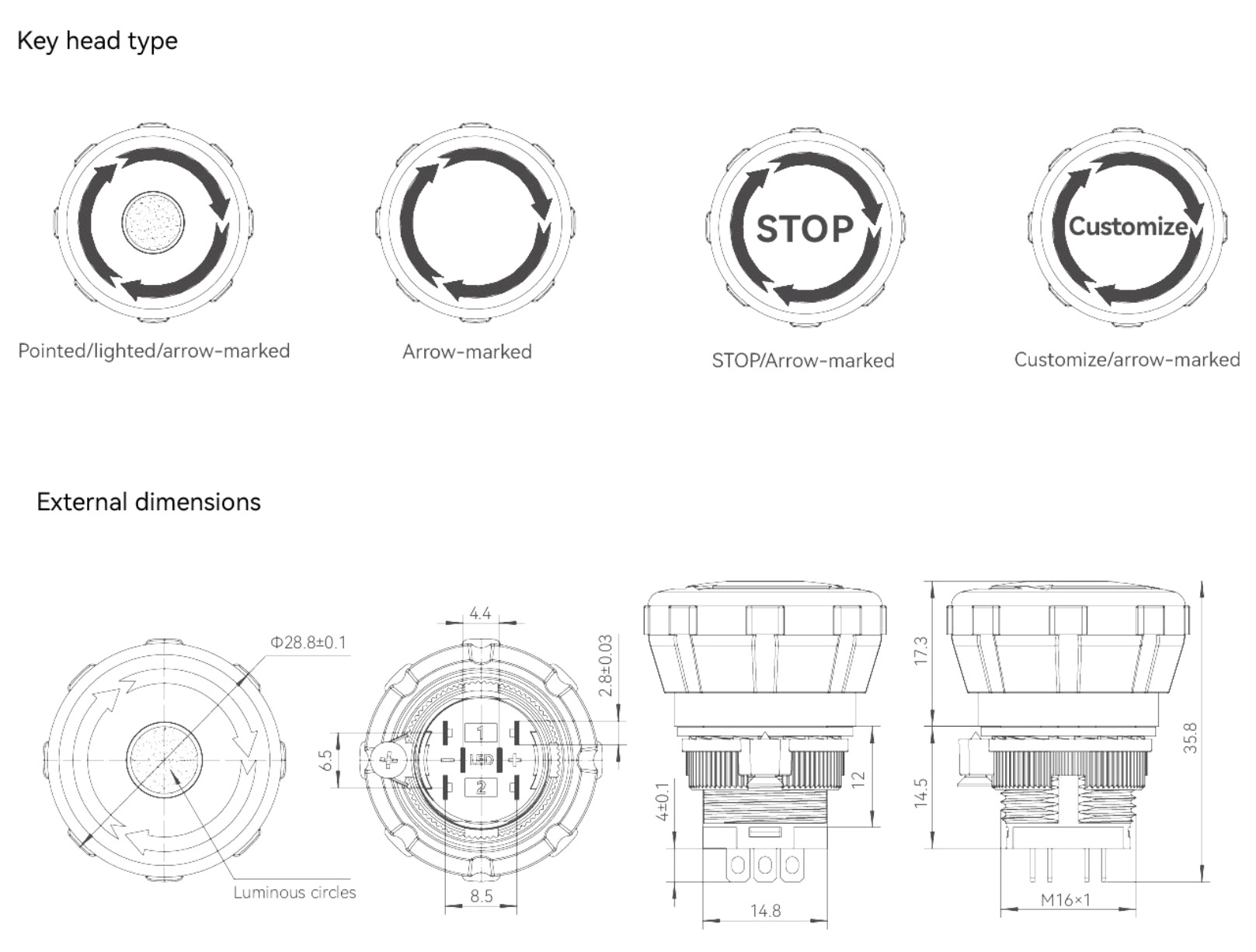

External Dimensions:

Parameters of the switch
Mounting hole diameter 16~16.2mm
Switching voltage 1.5V~250VAC/DC
Current rating Resistive loads DC-13:12V/24V5A
AC-15:110V/250V5A
Inductive loads AC-15:110V/250V1A
DC-13:110V1A
Rated heating current ith:5A/250VAC
Waterproof rating IP67 at the end of the button
Ambient temperature 30℃~85℃
Form of work Self-locking/self-resettings(optional)

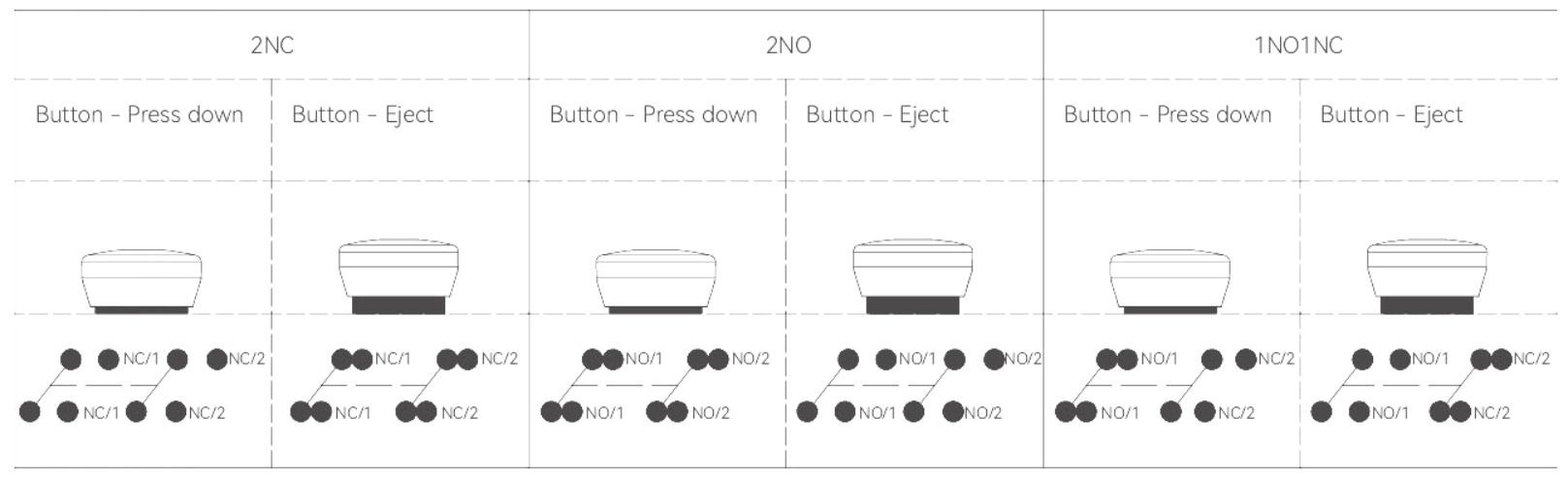

Switch combinations 2NO/2NC/1NO1NC
Lamp bead voltage AC/DC:3.3V、6V、9V、12V、24V、36V、48V
Lamp bead current 2mA~20mA
PIN pin style 2.8mm Solder pins
Base material Modified nylon PA66
Dielectric strength >100MQ 500VDC/h
Compressive strength Pins and housings 1500VAC 20mA/min
Glowing color R-Red G-Green B-Blue Y-Yelow W-White
Housing material PA66 nylon
Key Material PA66 nylon
Contact material Silver tin oxide alloy contacts
Electrical life DC-13:12V/24V5A>100,000 timesAC-15:110V/220V5A>10
Contact resistanceh Contact resistanceh<50m&
Press down on pressure Approximately 2.5~4N
Button travel The key stroke is 3mm and the contact stroke is Imm

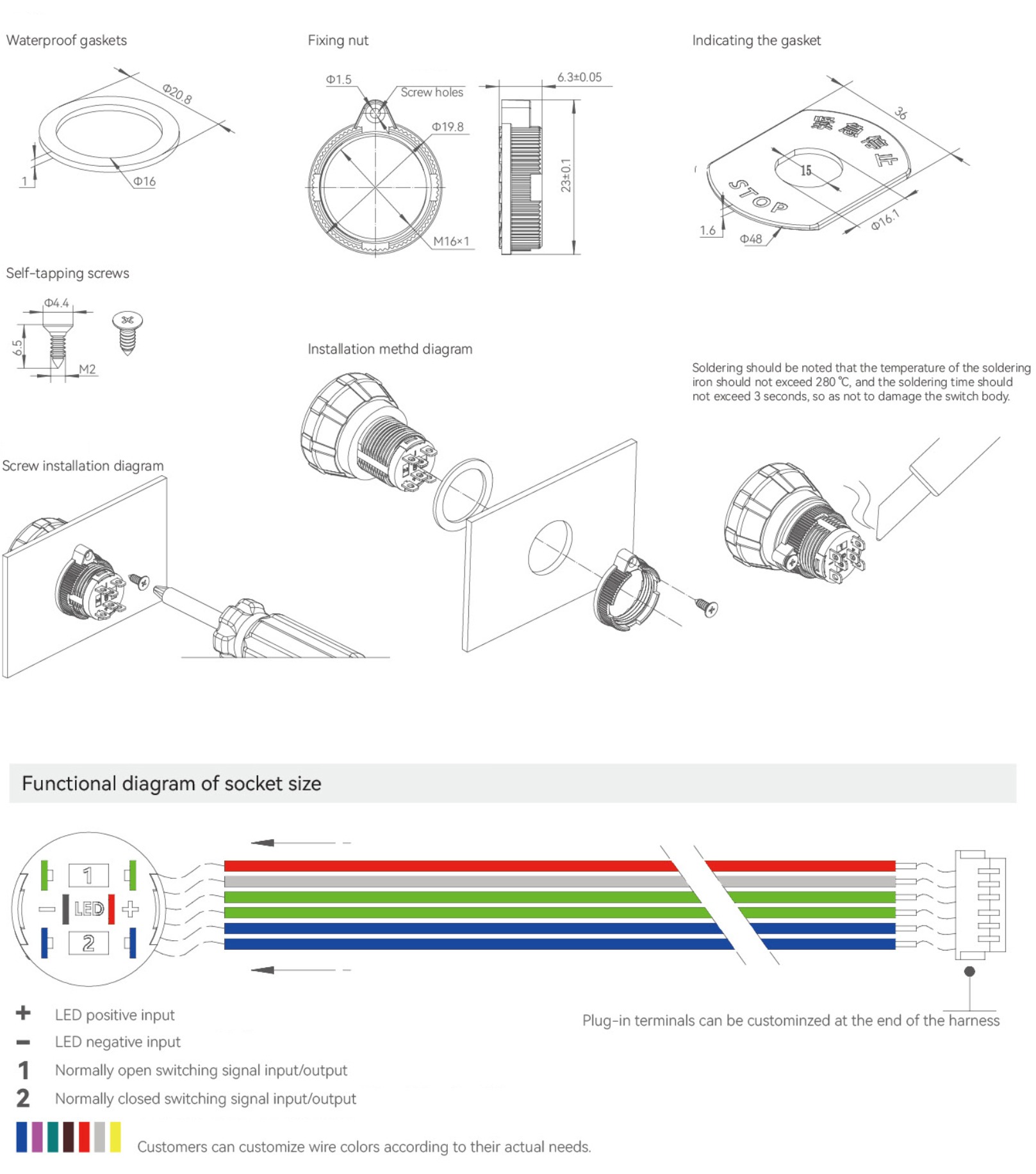

LED electrical schematic
One color          Two color switching positive and negative poles

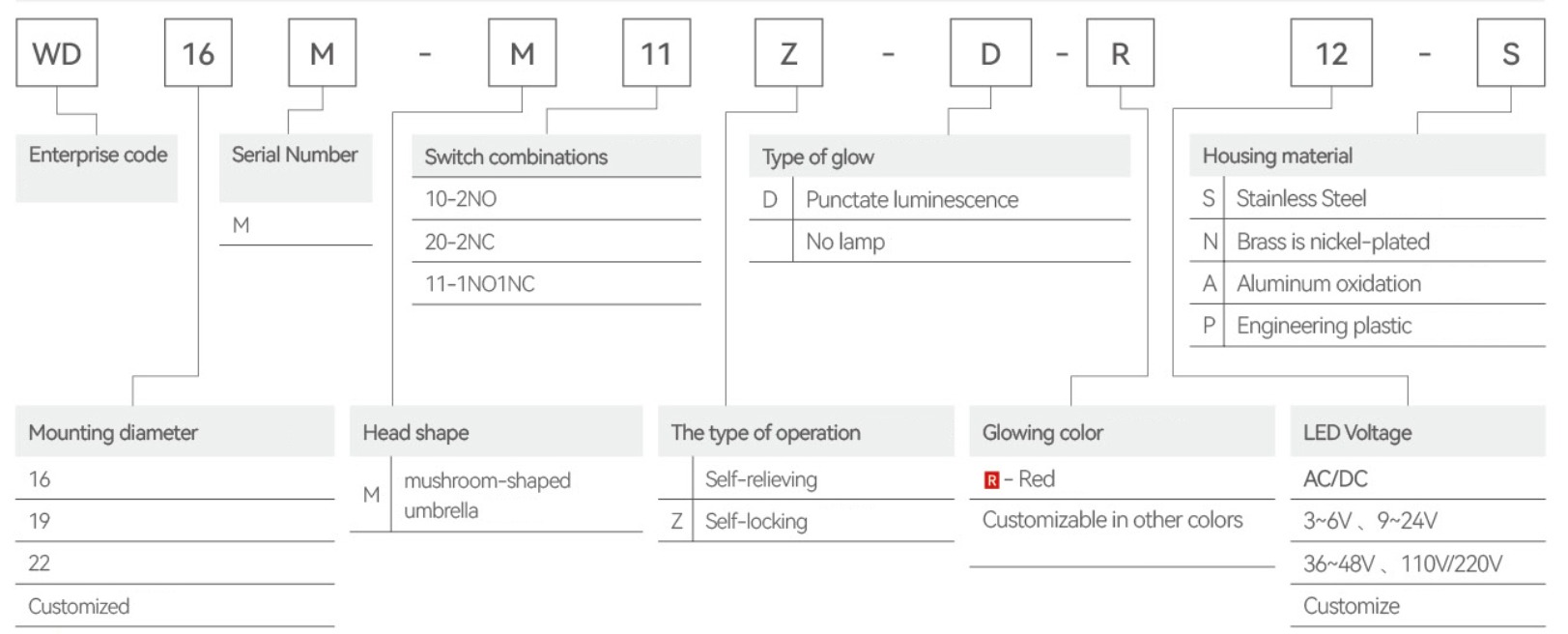

The type of key:

Physical appearance:
