16/19/22mm Fully Sealed Waterproof Metal Pushbutton Switch

Product Overview
The 16mm, 19mm, and 22mm fully sealed waterproof metal pushbutton switches are engineered to meet diverse industrial and commercial requirements, each offering unique features tailored to specific applications.

16mm Pushbutton Switch: Compact and versatile, the 16mm switch is ideal for space-constrained environments. It offers momentary or latching functions with IP67 waterproof protection, making it suitable for control panels, medical devices, and consumer electronics.

19mm Pushbutton Switch: Striking a balance between size and functionality, the 19mm switch provides enhanced visibility and is commonly used in automotive and machinery applications. It supports both momentary and latching operations and is available with LED illumination options.

22mm Pushbutton Switch: Designed for heavy-duty applications, the 22mm switch features a larger actuator for tactile feedback and is often used in industrial control systems, kiosks, and safety equipment.

Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd.
  • Lowtemperature Lowtemperature
  • Hightemperature Hightemperature
  • Flame retardant Flame retardant
  • Large keys Large keys
  • Multiple luminous colors Multiple luminous colors
  • Promise lamp beads Promise lamp beads
  • AC and DC AC and DC
  • Built-in buck resistor Built-in buck resistor
  • Built-in waterproof ring Built-in waterproof ring
Description Physical Appearance Contact Us
Product Description:

Product Details
Uniform thickness of the outer garment ensures electrical safety
CNC processing, exquisite appearance
Large aperture,high brightness
Environmentally friendly sealing ring, brass nut

Product Details:
  • Zhejiang Wandu Electric Co., Ltd. Uniform-thickness-of-the-outer-garment-1
  • Zhejiang Wandu Electric Co., Ltd. CNC-processing-exquisite-appearance-13
  • Zhejiang Wandu Electric Co., Ltd. Large-aperture-high-brightness-12
  • Zhejiang Wandu Electric Co., Ltd. Environmentally friendly sealing ring, brass nut

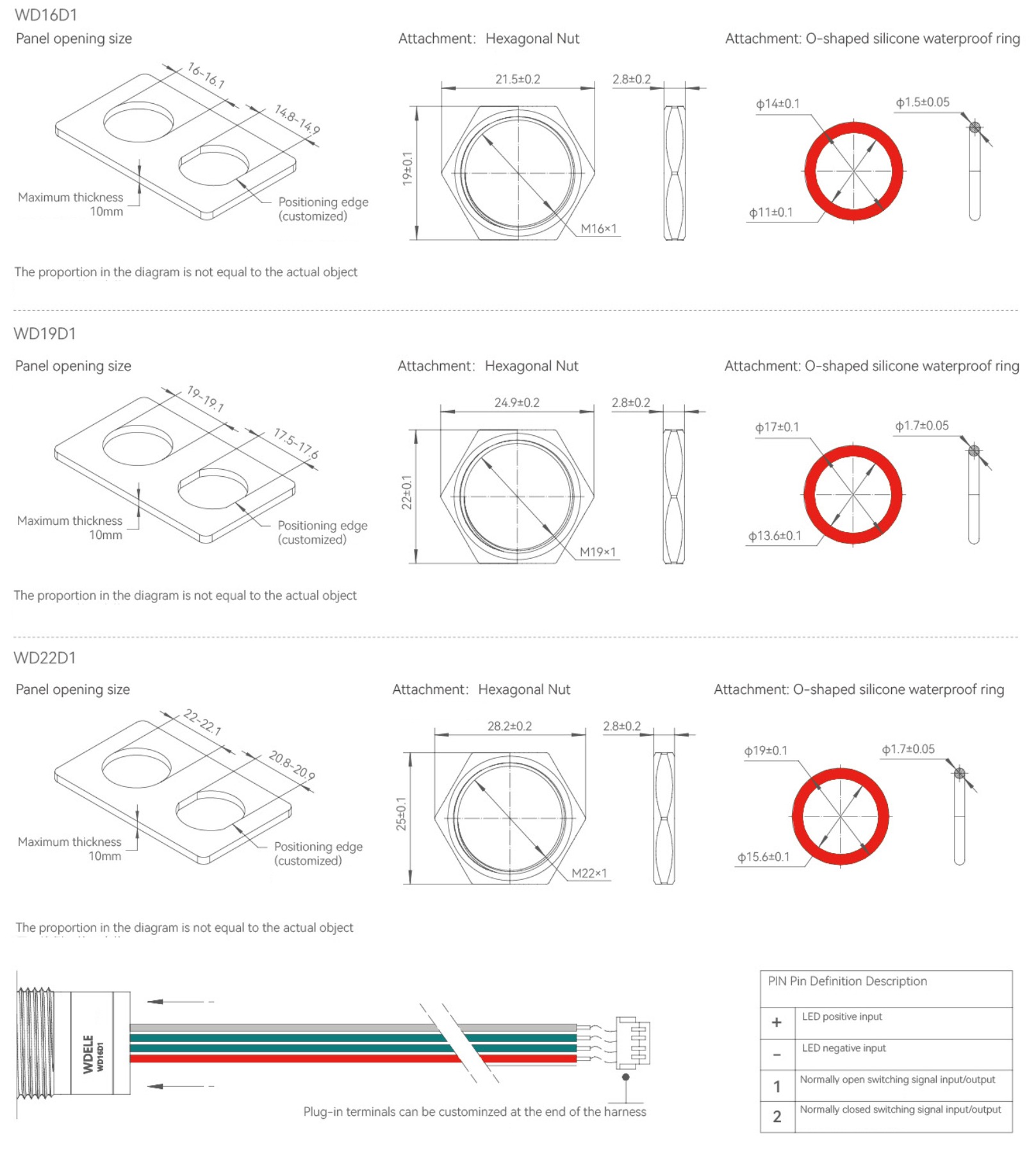

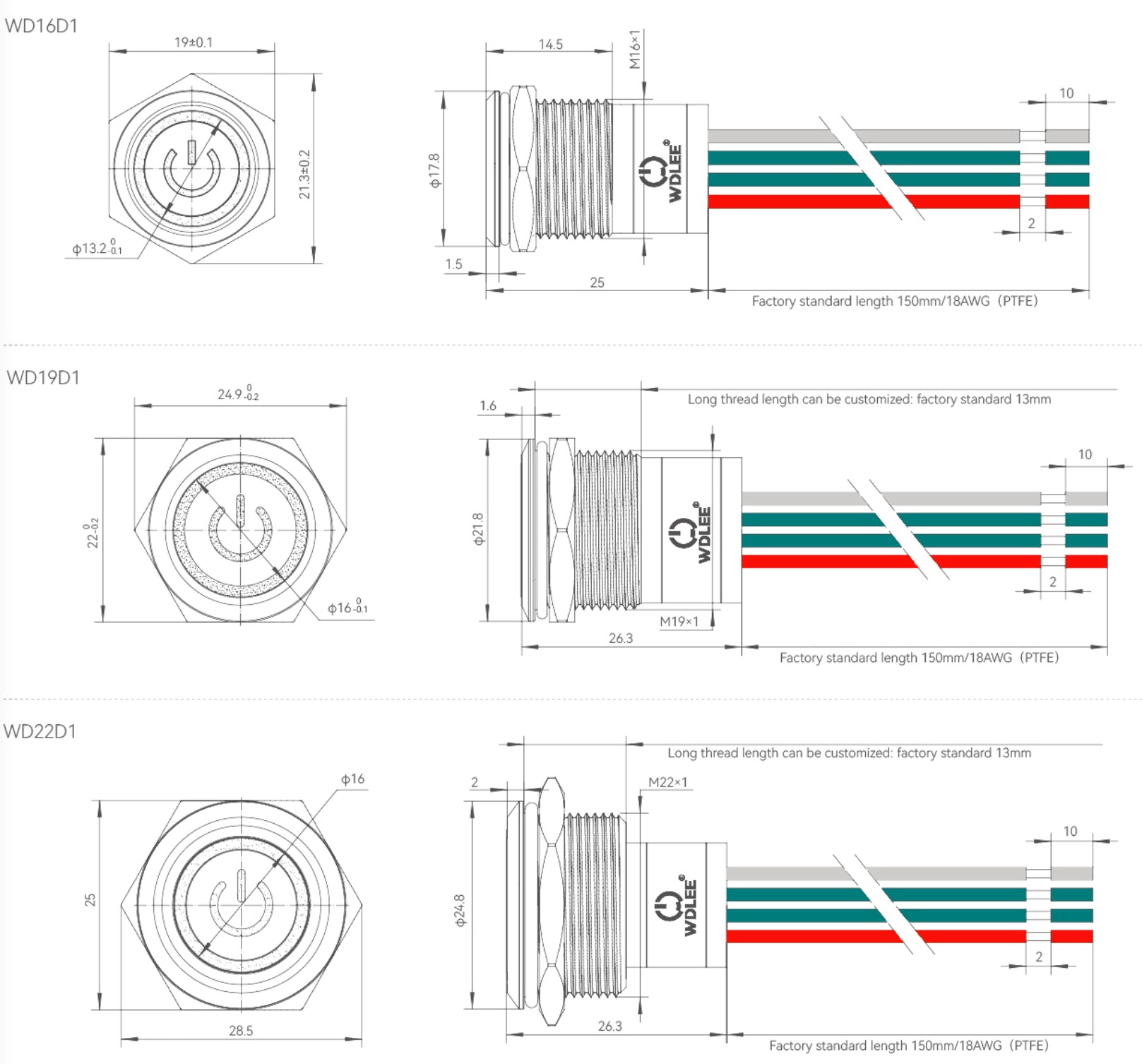

External Dimensions:
Parameters of the switch
Mounting hole diameter 16~16.1mm、19~19.1mm、22~22.1mm
Switching voltage 1.5V~250VAC/DC
Current rating: Resistive loads DC-13:12V/24V5A
AC-15:110V/250V 10A
Inductive loads AC-15:110V/250V 2.5A
DC-13:110V 2.5A
Rated heating current ith:20A/250VAC
Waterproof rating IP67 at the end of the button
Ambient temperature -30℃~85℃
Form of work Self-locking/self-resetting(optional)
Switch combinations 1NO
Lamp bead voltage AC/DC:3.3V、6V、9V、12V、24V、36V、48V、110V、220V
Lamp bead current 2mA~20mA
PIN pin style Switch pin 4.8×0.8&IED pin 2.8×0.5
Base material Modified nylon PA66
Dielectric strength >100MQ 500VDC/h
Compressive strength Pins and housings 2500VAC 20mA/min
Glowings color R-Red G-Green B-Blue Y-Yellow W-White
Housing material SUS304/Brass nickel-plated/aluminum alloy anodized
Key Material PC&SUS316
Contact material Silver tin oxide alloy contacts
Electrical life DC-13:12V/24V5A>30,000 times AC-15:110V/250V 10A>3
Contact resistanceh Contact resistanceh<50mQ
Press down on pressure Approximately 2.5~4N
Button trave The key stroke is 3mm and the contact stroke is 1.5mm
LED electrical schematic
One color
The type of key:

Physical appearance:

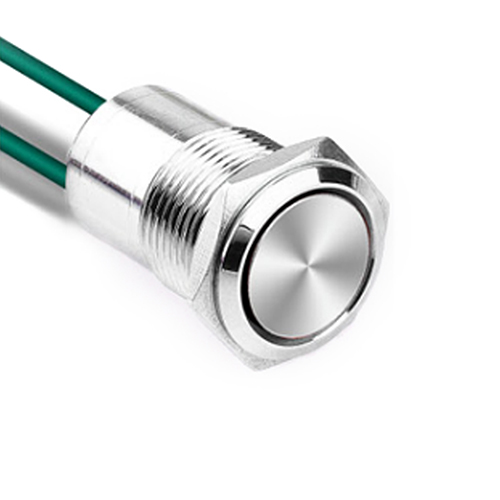

  •             WD16D1 Waterproof Metal Pushbutton Switches WD16D1

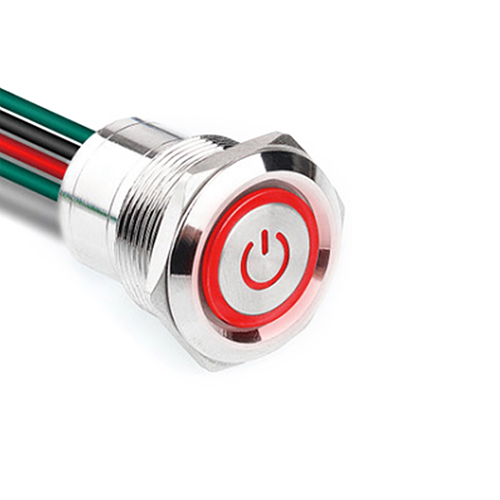

  •             WD22D1 Waterproof Metal Pushbutton Switches WD22D1

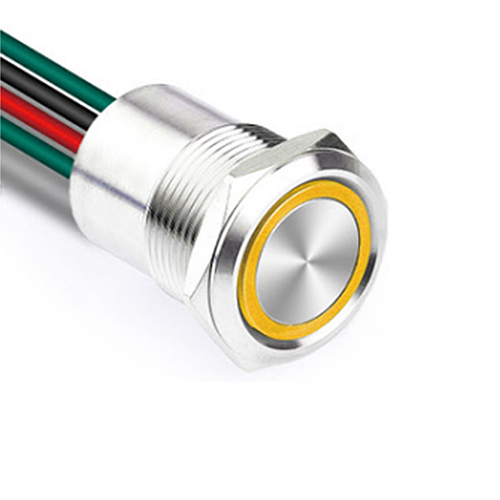

  •             WD19D1-2 Waterproof Metal Pushbutton Switches WD19D1-2
