16mm High Current 15A Metal Push Button Switch

Product Overview
The 16mm High Current 15A Metal Push Button Switch presents a compact yet powerful solution where space is limited but current demands are high. With a rugged metal body and enlarged silver contacts, it reliably handles up to 15 amps. The self‐locking mechanism ensures stable latching, while its thickened terminals reduce overheating during prolonged operation. Built for durability, it offers up to one million mechanical cycles, and its IP65 rating (customizable to IP67) shields the internal components from dust and water ingress.

Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd.
  • Deep waterproofing Deep waterproofing
  • powerfulload powerfulload
  • Flame retardant Flame retardant
  • Big silver contact Big silver contact
  • Multiple luminous colors Multiple luminous colors
  • Promise lamp beads Promise lamp beads
  • AC and DC AC and DC
  • Built-in buck resistor Built-in buck resistor
  • Built-in waterproof ring Built-in waterproof ring
Description Physical Appearance Contact Us
Product Description:

Product Details
Gold-plated pins, large silver contacts
CNC processing, exquisite appearance
Large aperture, high brightness
Environmentally friendly sealing ring, brass nut

Product FeaturesAn optionall wired socket connection to ensure contact performance;
The diameter of the operation button is increased. which has stable self-locking performance and comfortable operation feet;
it has a delicate metal texture and high-end appearance design;
The new structural design has stable on-off performance and improved the ability to resist welding deformation;
IP65 waterproof grade at the end of the button (IP67 can be customized);
Mechanical life: up to 1,000,000 cycles;
Enlarge and thickened silver contacts to achieve 15A ultra-large passing current;
Widening and thickening the pins to improve the current passing performance and refuse to heat;
it has applied for or obtained a number of patents, and has passed RoHS, CQC, CE certification.

Product Details:
  • Zhejiang Wandu Electric Co., Ltd. Gold-plated-pins-large-silver-contacts
  • Zhejiang Wandu Electric Co., Ltd. CNC-processing-exquisite-appearance
  • Zhejiang Wandu Electric Co., Ltd. Large-aperture-high-brightness
  • Zhejiang Wandu Electric Co., Ltd. Environmentally friendly sealing ring, brass nut

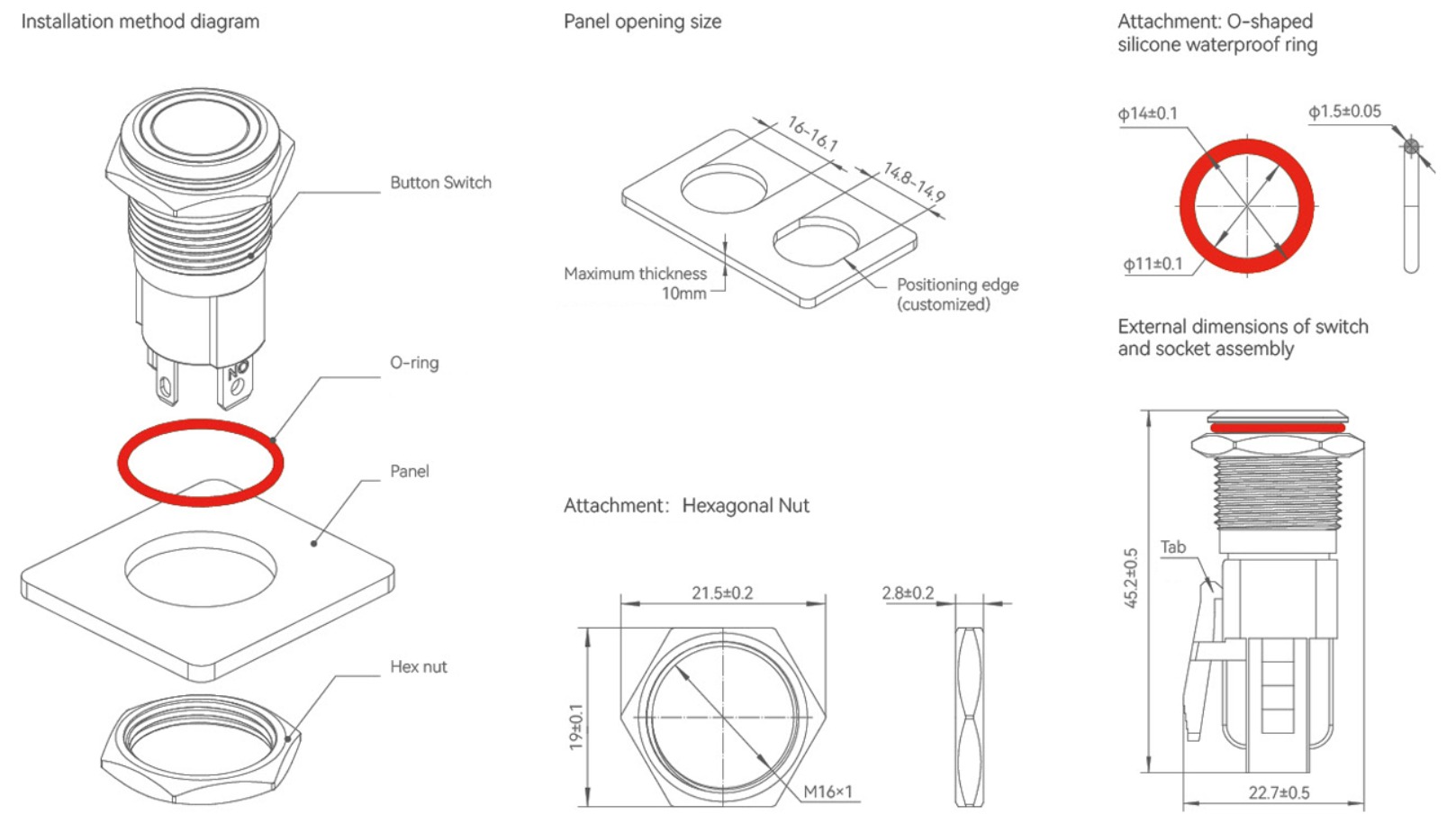

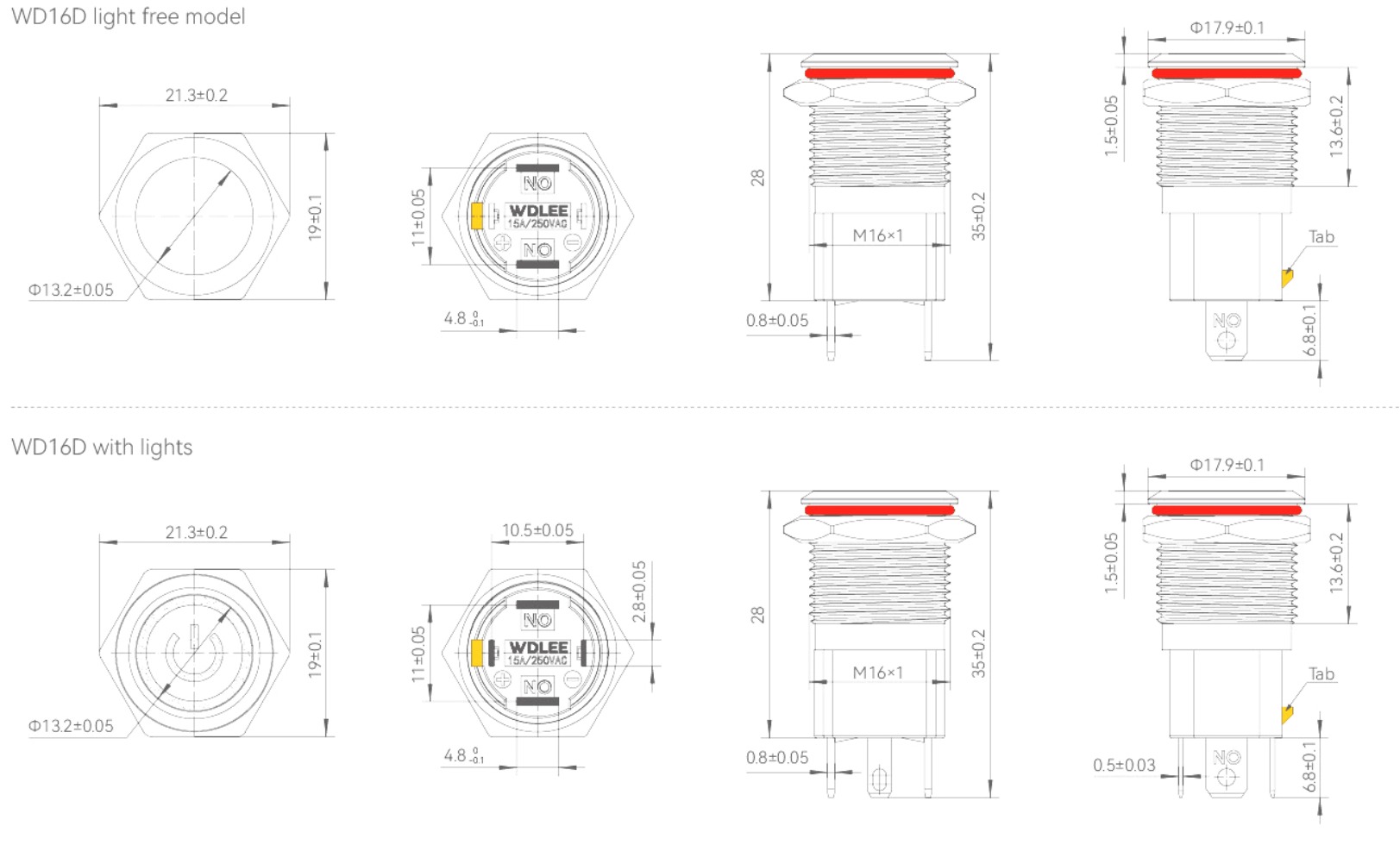

External Dimensions:

The type of key:

Physical appearance:

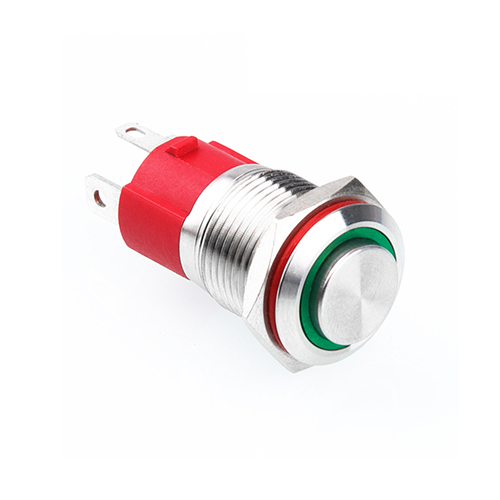

  •             WD16D-G1-E-□□-S High Current Metal Pushbutton Switches WD16D-G1-E-□□-S

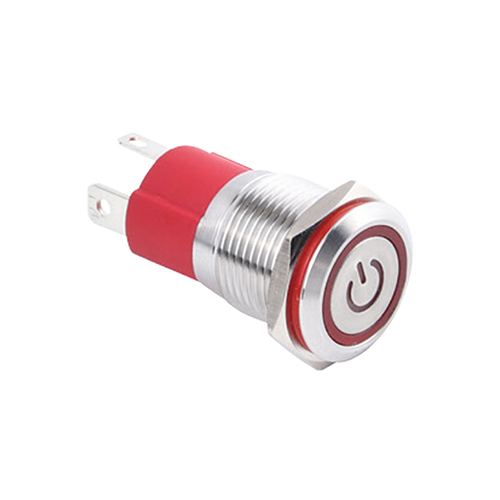

  •             WD16D-P1-EC-□□-S High Current Metal Pushbutton Switches WD16D-P1-EC-□□-S

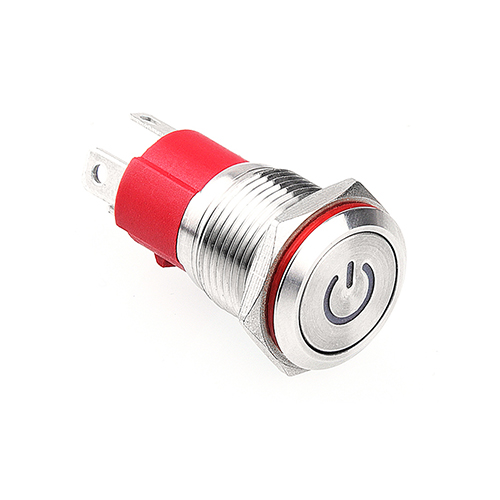

  •             WD16D-P1-C-□□-S-1 High Current Metal Pushbutton Switches WD16D-P1-C-□□-S-1

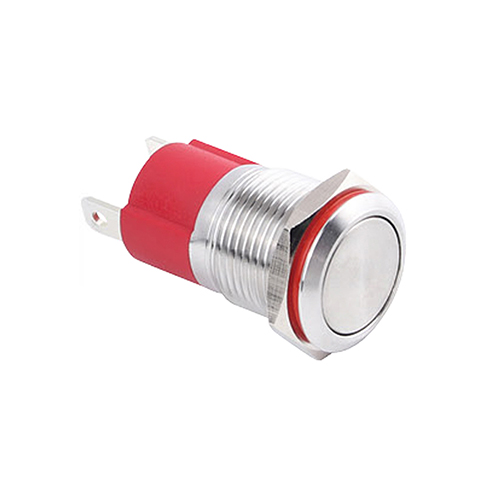

  •             WD16D-P1-S-1 High Current Metal Pushbutton Switches WD16D-P1-S-1

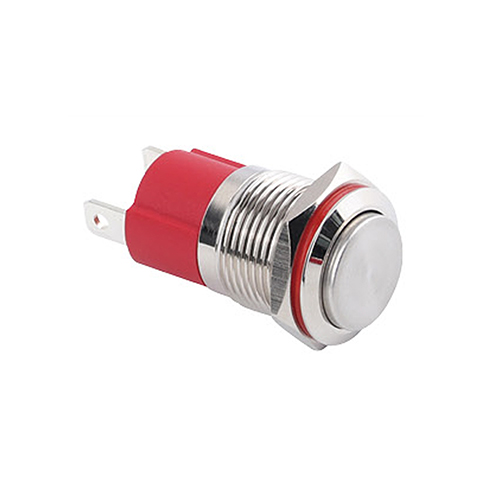

  •             WD16D-G1-S High Current Metal Pushbutton Switches WD16D-G1-S

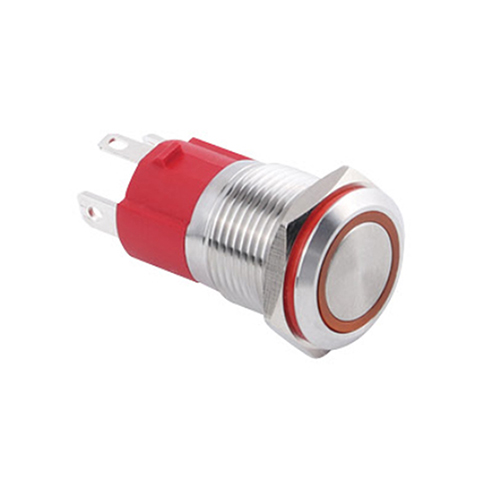

  •             WD16D-P1-E-□□-S High Current Metal Pushbutton Switches WD16D-P1-E-□□-S

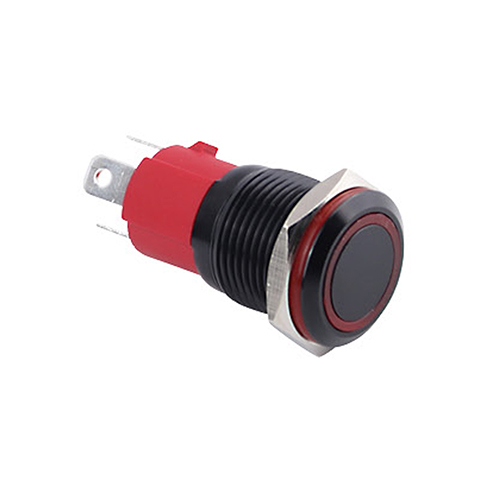

  •             WD16D-P1-E-□□-S-A High Current Metal Pushbutton Switches WD16D-P1-E-□□-S-A

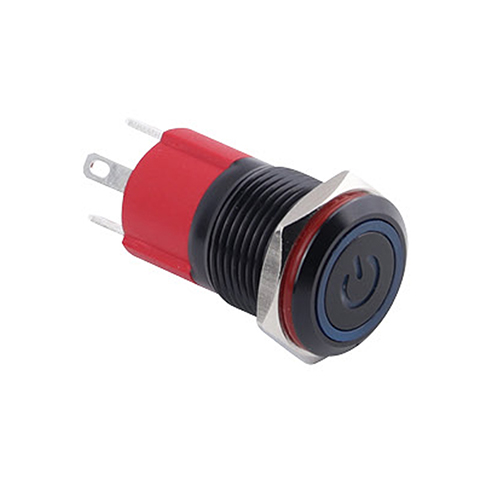

  •             WD16D-P1-EC-□□-S-A High Current Metal Pushbutton Switches WD16D-P1-EC-□□-S-A
