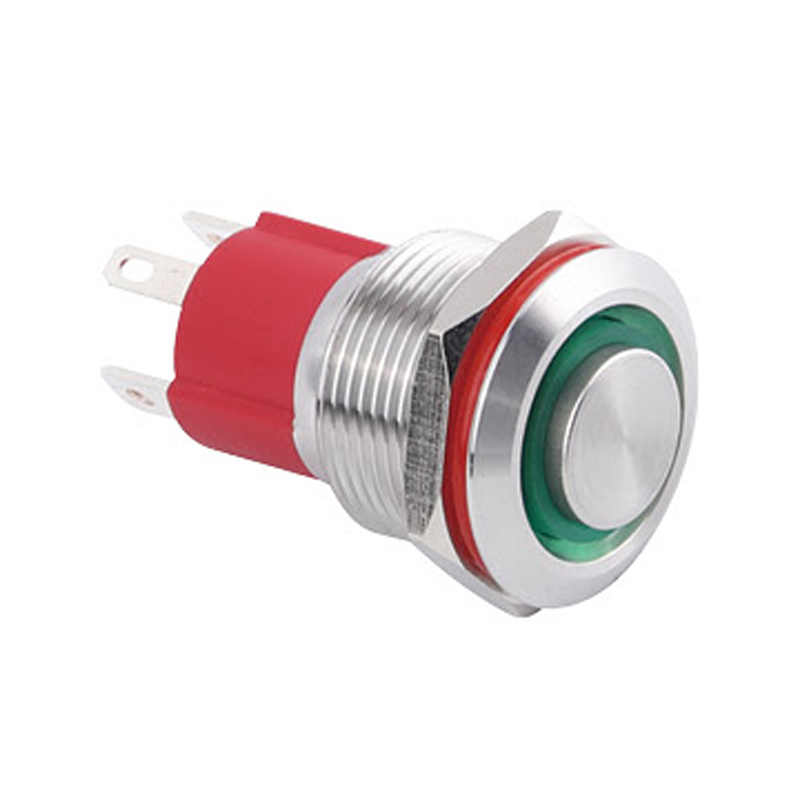

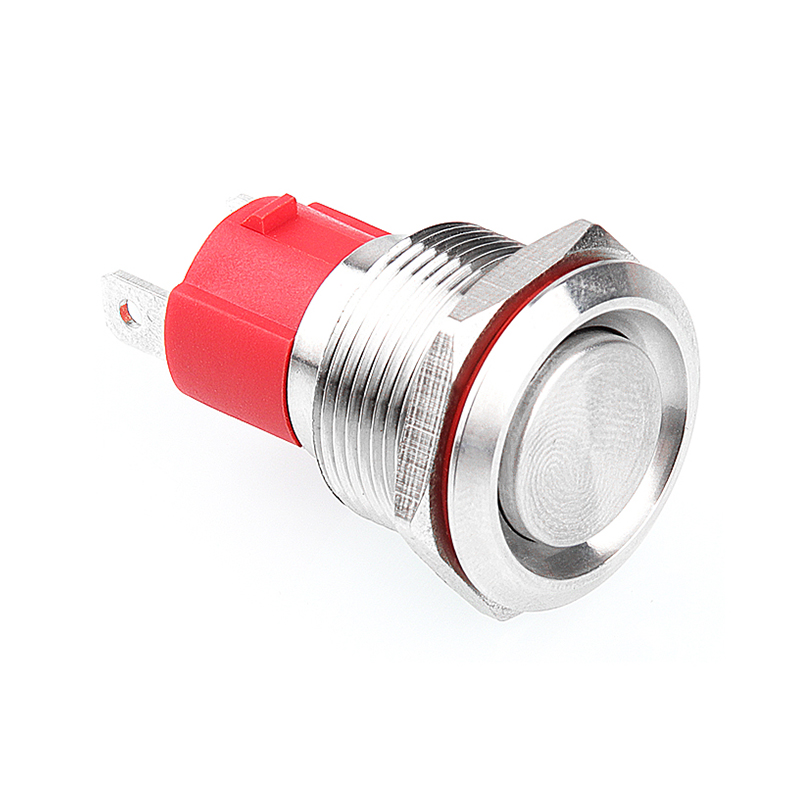

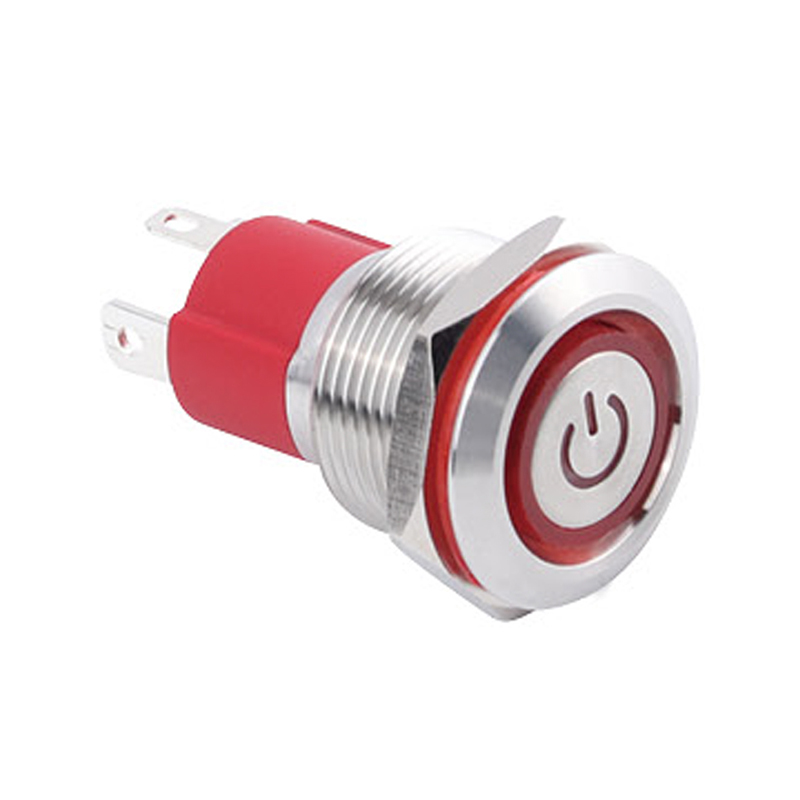

19mm Big Current LED Stainless Steel Metal Pushbutton Switch

Product Overview
The 19mm Big Current LED Stainless Steel Pushbutton integrates a visual LED feedback with high current capacity, making it ideal for control panels where indication and robustness are equally important. Its stainless steel bezel delivers corrosion resistance and high‐end appearance, while its larger diameter improves user ergonomics. The LED integrated ring or center provides status indication, useful in dim or variable lighting conditions. Silver contacts are thickened to sustain elevated current loads, and the widened pins facilitate efficient current flow.

Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd. Zhejiang Wandu Electric Co., Ltd.
  • Deep waterproofing Deep waterproofing
  • powerfulload powerfulload
  • Flame retardant Flame retardant
  • Big silver contact Big silver contact
  • Multiple luminous colors Multiple luminous colors
  • Promise lamp beads Promise lamp beads
  • AC and DC AC and DC
  • Built-in buck resistor Built-in buck resistor
  • Built-in waterproof ring Built-in waterproof ring
Description Physical Appearance Contact Us
Product Description:

Product Details
Gold plated pins, large silver contacts
CNC processing, exquisite appearance
Large aperture,high brightness
Environmentally friendly sealing ring, brass nut

Product Features
Optional wired socket connection to ensure contact performance;
The diameter of the operation button is increased. which has stable self-locking performance and comfortable operation feet;
it has a delicate metal texture and high-end appearance design;
The new structural design has stable on-off performance and improved the ability to resist welding deformation;
IP65 waterproof grade at the end of the button (IP67 can be customized);
Mechanical life: up to 1,000,000 cycles;
Enlarge and thickened silver contacts to achieve 15A ultra-large passing current;
Widening and thickening the pins to improve the current passing performance and refuse to heat;
it has applied for or obtained a number of patents, and has passed RoHS, CQC, CE certification.

Product Details:
  • Zhejiang Wandu Electric Co., Ltd. Gold-plated-pins-large-silver-contacts
  • Zhejiang Wandu Electric Co., Ltd. CNC-processing-exquisite-appearance
  • Zhejiang Wandu Electric Co., Ltd. Largeaperturehighbrightness
  • Zhejiang Wandu Electric Co., Ltd. Environmentally friendly sealing ring, brass nut

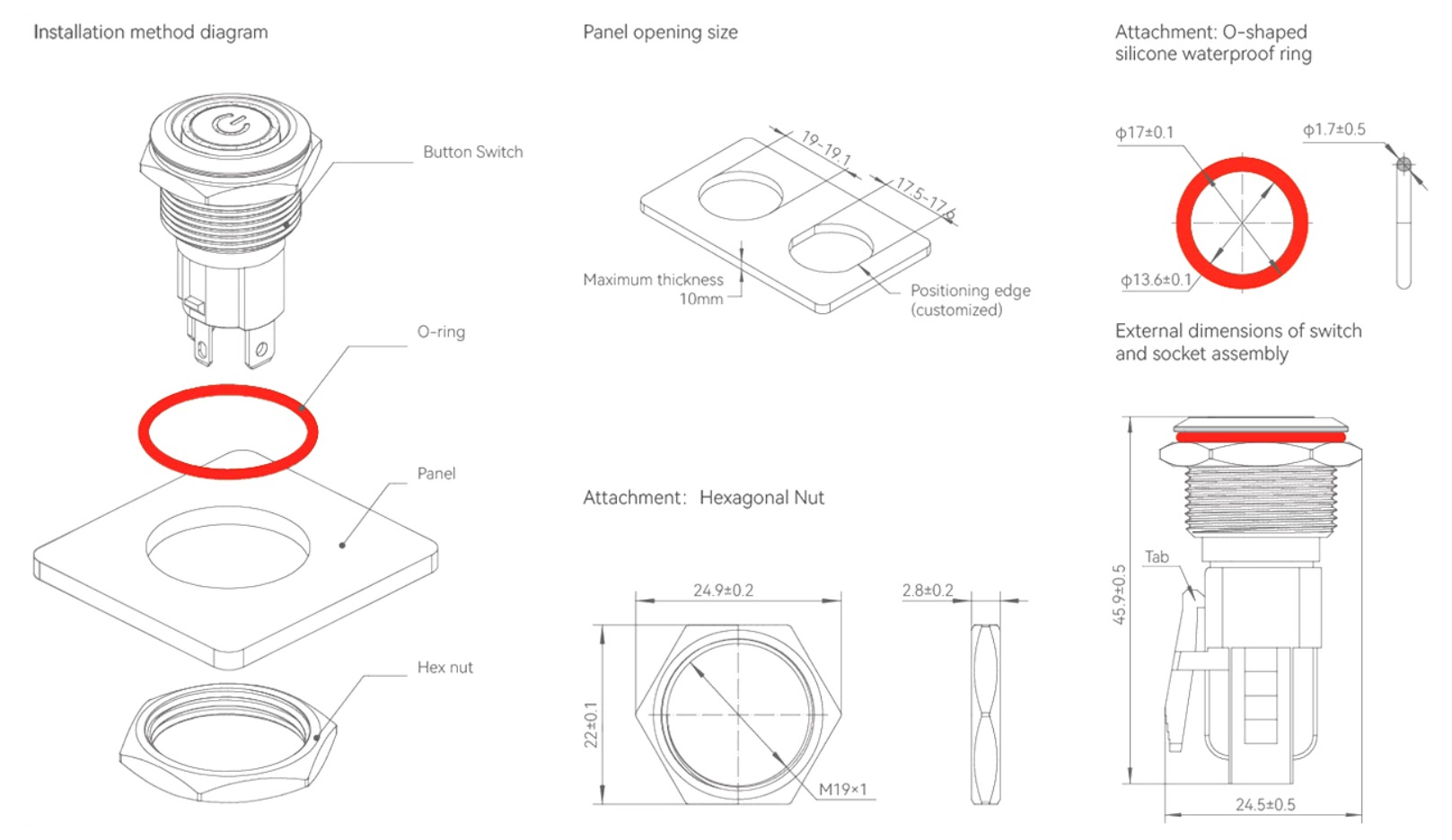

External Dimensions:

The type of key:

Physical appearance:

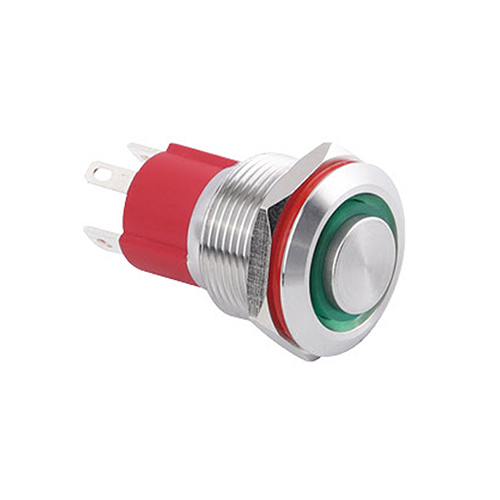

  •             WD19D-G1-E-□□-S High Current Metal Pushbutton Switches WD19D-G1-E-□□-S

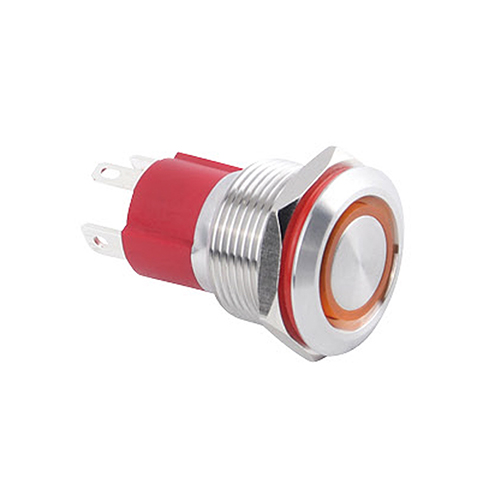

  •             WD19D-P1-E-□□-S High Current Metal Pushbutton Switches WD19D-P1-E-□□-S

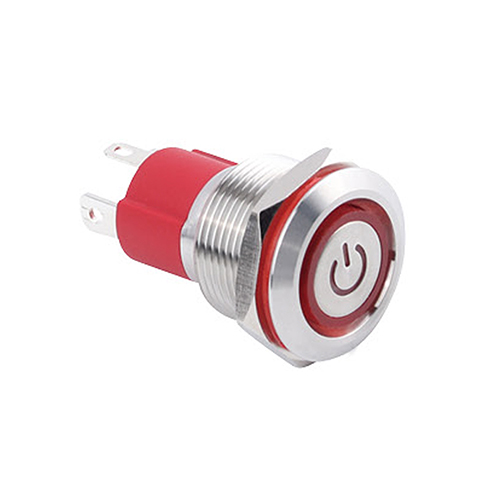

  •             WD19D-P1-EC-□□-S High Current Metal Pushbutton Switches WD19D-P1-EC-□□-S

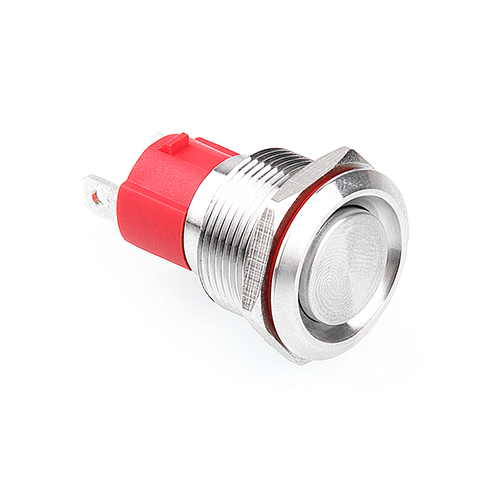

  •             WD19D-P1-S-1 High Current Metal Pushbutton Switches WD19D-P1-S-1
